Belden 942069003
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

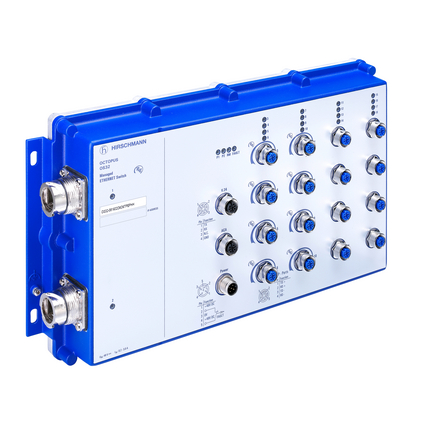

Managed IP 65 / IP 67 switch in accordance with IEEE 802.3, store-and-forward-switching, software layer 2 Professional, Fast-Ethernet (10/100 MBit/s) and Gigabit-Ethernet (1000 MBit/s) ports, power sourcing equipment in accordance with IEEE 802.3af (PoE inline power), electrical Fast-Ethernet (10/100 MBit/s) and Gigabit-Ethernet (1000 Mbit/s) SFP-slots in accordance with IEC 63076-3-106, Version 1942069003 - OS32-081602O6O6TPEPHH - Managed IP67 PoE-Swich, 18 ports, supply voltage 48 VDC, Software L2P, train approvals
Belden 942069003 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- MTBF (Telecordia SR-332 Issue 3) @ 25°C
- 44 Years
- Note
- Please note that some recommended accessory parts only support a temperature range from -25 ºC to +70 ºC and might limit the possible operating conditions for the entire system.
- Operating temperature
- -40-+70 °C
- Relative humidity (also condensing)
- 10-100 %
- Storage/transport temperature
- -40-+85 °C
Approvals
- Basis Standard
- CE, EAC, Australian Regulatory Compliance Mark (RCM)
- Railway norm
- EN 50155, EN 45545-2, EN 50121-4
- Transportation
- E1
EMC emitted immunity
- EN 55032
- EN 55032 Class A
- FCC CFR47 Part 15
- FCC 47CFR Part 15, Class A
EMC interference immunity
- EN 61000-4-2 electrostatic discharge (ESD)
- 6 kV contact discharge, 8 kV air discharge
- EN 61000-4-3 electromagnetic field
- 20 V/m (80-3000 MHz)
- EN 61000-4-4 fast transients (burst)
- 2 kV power line, 2 kV data line
- EN 61000-4-5 surge voltage
- power line: 2 kV (line/earth), 1 kV (line/line), 1 kV data line
- EN 61000-4-6 Conducted Immunity
- 3 V (10 kHz-150 kHz), 10 V (150 kHz-80 MHz)
Further Instructions
- Certificates
- https://www.doc.hirschmann.com/certificates.html
- Product Documentation
- https://www.doc.hirschmann.com
- Update and Revision
- Revision Number: 0.55 Revision Date: 08-06-2021
Mechanical construction
- Dimensions (WxHxD)
- 261 mm x 189 mm x 70 mm
- Mounting
- Wall mounting
- Protection class
- IP65, IP67
- Weight
- 1700 g
Mechanical stability
- IEC 60068-2-27 shock
- 15 g, 11 ms duration, 18 shocks
- IEC 60068-2-6 vibration
- 1 mm, 2 Hz-13.2 Hz, 90 min. 0.7 g, 13.2 Hz-100 Hz, 90 min. 3.5 mm, 3 Hz-9 Hz, 10 cycles, 1 octave/min. 1 g, 9 Hz-150 Hz, 10 cycles, 1 octave/min
More Interfaces
- Power supply/signaling contact
- 1 x M12 5-pin connector, A coding,
- USB interface
- 1 x M12 5-pin socket, A coding
- V.24 interface
- 1 x M12 4-pin connector, A coding
Network size - cascadibility
- Line - / star topology
- any
- Ring structure (HIPER-Ring) quantity switches
- 50 (reconfiguration time
Network size - length of cable
- Multimode fiber (MM) 50/125 µm
- see SFP LWL-Modul M-SFP-SX/LC and M-SFP-LX/LC
- Multimode fiber (MM) 62.5/125 µm
- see SFP LWL-Modul M-SFP-SX/LC and M-SFP-LX/LC
- Single mode fiber (SM) 9/125 µm
- see SFP LWL-Modul M-SFP-LX/LC
- Twisted pair (TP)
- 0-100 m
Power requirements
- Operating Voltage
- 48 VDC (46 .. 57 VDC)
- Power consumption
- max. 145 W with 120 W PoE output
- Power output in BTU (IT)/h
- max. 67
- Redundancy functions
- redundant power supply
Product description
- Part Number
- 942069003
- Port type and quantity
- 18 ports in total uplink ports: 1000 BASE-SFP-slots acc. IEC 63076-3-106, Version 1 16 x 10/100 BASE-TX, thereof 8 x 10/100 BASE-TX PoE (phantom power) TP-cable, auto-crossing, auto-negotiation, auto-polarity.
- Type
- OS32-081602O6O6TPEPHH
Scope of delivery and accessories
- Accessories to Order Separately
- ACA22-M12 (EEC) (942 125-001), M12 conector, "D"-coded (934 445-001) 2 m cordset with M12-connector, "D"-coded (934 578-001) 5 m cordset with M12-connectors, "D"-coded (934 578-002) 10 m cordset with M12-connectors, "D"-coded (934 578-003) Bulkhead M12 "D"-coded to RJ45 (934 498-001), OCTOPUS metal dust cover set (25 pieces) (942 057-001), OCTOPUS plastic dust cover set (25 pieces) (942 057-002)*
- Scope of delivery
- 1 × Device, 1 x connector for power connection, General safety instructions
Software
- Configuration
- Command Line Interface (CLI), auto-configuration adapter, TELNET, BootP, DHCP Option 82, HiDiscovery
- Diagnostics
- LEDs (power 1, power 2, link status, data, redundancy manager, error) cable tester, signalling contact, RMON (statistics, history, alarms, events), SysLog support, port mirroring
- Management
- Serial interface V.24 web-interface, Telnet, SSHv2, HTTP, HTTPS, TFTP, SFTP, SNMP v1/v2/v3, Traps
- Security
- Port Security (IP and MAC), SNMPv3, SSHv3, SNMP access settings (VLAN/IP), IEEE 802.1X authentication
