Belden 942056001
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

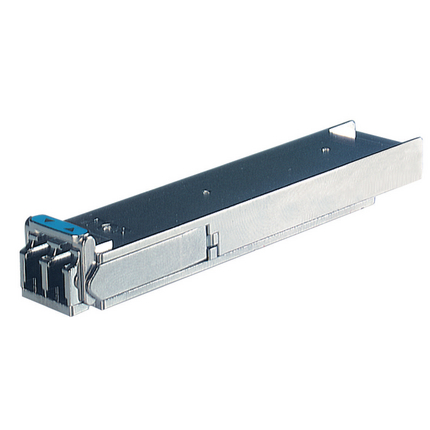

XFP Fiberoptic 10Gigabit-Ethernet Transceiver SM with LC connector, extended temperature range942056001 - M-XFP ER/LC EEC - XFP Fiberoptic 10Gigabit-Ethernet Transceiver SM, extended temperature range
Belden 942056001 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- MTBF (Telecordia SR-332 Issue 3) @ 25°C
- 142 Years
- Operating temperature
- -40-+85 °C
- Relative humidity (non-condensing)
- 5-95 %
- Storage/transport temperature
- -40-+85 °C
Approvals
- Hazardous locations
- depending on deployed switch
- Safety of information technology equipment
- EN60950
- Shipbuilding
- depending on deployed switch
EMC emitted immunity
- EN 55022
- EN 55022 Class A
- FCC CFR47 Part 15
- FCC 47CFR Part 15, Class A
EMC interference immunity
- EN 61000-4-2 electrostatic discharge (ESD)
- 6 kV contact discharge, 8 kV air discharge
- EN 61000-4-3 electromagnetic field
- 10 V/m (80-1000 MHz)
- EN 61000-4-4 fast transients (burst)
- 2 kV power line, 1 kV data line
- EN 61000-4-5 surge voltage
- power line: 2 kV (line/earth), 1 kV (line/line), 1 kV data line
- EN 61000-4-6 Conducted Immunity
- 3 V (10 kHz-150 kHz), 10 V (150 kHz-80 MHz)
Further Instructions
- Certificates
- https://www.doc.hirschmann.com/certificates.html
- Product Documentation
- https://www.doc.hirschmann.com
- Update and Revision
- Revision Number: 0.67 Revision Date: 03-11-2021
Mechanical construction
- Dimensions (WxHxD)
- 23 mm x 14 mm x 78 mm
- Mounting
- XFP slot
- Protection class
- IP20
- Weight
- 70 g
Mechanical stability
- IEC 60068-2-27 shock
- 15 g, 11 ms duration, 18 shocks
- IEC 60068-2-6 vibration
- 1 mm, 2 Hz-13.2 Hz, 90 min.; 0.7 g, 13.2 Hz-100 Hz, 90 min.; 3.5 mm, 3 Hz-9 Hz, 10 cycles, 1 octave/min.; 1 g, 9 Hz-150 Hz, 10 cycles, 1 octave/min
Network size - length of cable
- Single mode fiber (SM) 9/125 µm
- 10 - 40 km (Link Budget at 1550 nm = 3 - 15 dB; A = 0,25 dB/km; D = 19ps/(nm*km))
Power requirements
- Operating Voltage
- power supply via the switch
- Power consumption
- 3 W
Product description
- Description
- XFP Fiberoptic 10Gigabit-Ethernet Transceiver SM, extended temperature range
- Part Number
- 942056001
- Port type and quantity
- 1 x 10000 Mbit/s with LC Connector
- Type
- M-XFP ER/LC EEC
Scope of delivery and accessories
- Scope of delivery
- XFP module
Software
- Diagnostics
- Optical input and output power, transceiver temperature
