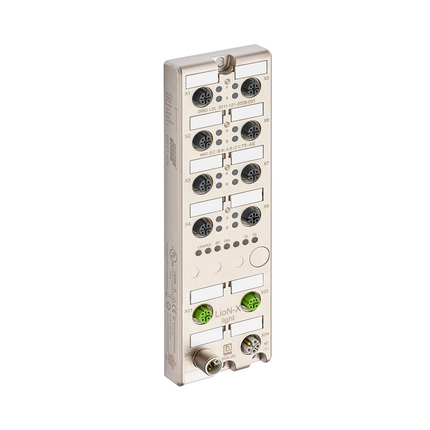

Belden 935701001

Approvals

• CSA
  • Yes, via UL
• IO-Link
  • Yes
• PNO
  • Yes
• UL
  • cULus Listed, UL 61010-1

Digital Input Channels

• Channel Type
  • Type 1 acc. to IEC 61131-2
• Connection
  • M12, 5-poles, A-coded
• Diagnostic Indicator
  • LED red per port
• Input Filter Time
  • configurable
• Input Voltage Range "0" signal
  • -3 V DC …+5 V DC
• Input Voltage Range "1" signal
  • 15 V DC ... 30 V DC
• Input Wiring
  • 2-, 3-, 4-wire
• Nominal Voltage
  • 24 V DC via US (module power supply)
• Number of Digital Input Channels
  • up to 16
• Number of Ports
  • 8x, X1 to X8
• Protective Circuit
  • Electronicaly: Overload protection, short-circuit protection
• Sensor Current Supply
  • max. 4A per port via Pin1L+
• Sensor Type
  • PNP
• Status Indicator
  • LED white or yellow per channel

Digital Output Channels

• Channel Type
  • p-switching
• Connection
  • M12, 5-poles, A-coded
• Diagnostic Idicator
  • LED red per port
• Galvanically Isolated
  • No
• Nominal Voltage
  • 24 V DC via US
• Number of Digital Output Channels
  • up to 16
• Number of Ports
  • 8x, X1 to X8
• Output Current per Channel
  • max. 500mA
• Output Wiring
  • 2-, 3-wire
• Overload Behavior
  • Auto off and on switching / Manual restart
• Protective Circuit
  • Electronicaly: Overload protection, short-circuit protection
• Status Indicator
  • LED white or yellow per channel

Electrical Isolation

• Bus connection / FE
  • 2000 V DC
• Uaux / FE
  • 500 V DC
• UL / FE
  • 500 V DC
• US (System Supply Voltage) / FE
  • 500 V DC
• US / UL (Actuator Supply Voltage)
  • 500 V DC

EMC Conformance

• EMC Directive
  • 2014/30/EU
• EN 55022 Radio Interference Properties
  • Class A
• EN 61000-4-2 Electrostatic Discharge (ESD)
  • Criterion B; 4 kV contact discharge, 8 kV air discharge
• EN 61000-4-3 Electromagnetic Field
  • Criterion A; Field intensity: 10 V/m
• EN 61000-4-4 Fast Transients (Burst)
  • Criterion B, 2 kV
• EN 61000-4-5 Surge Voltage
  • Criterion B; DC supply lines: ±0.5 kV/±0.5 kV (symmetrical/asymmetrical); For I/O ports with cables ≤ 30m
• EN 61000-4-6 Conducted immunity
  • Criterion A; Test voltage 10 V

General Data

• Accessories to Order Separately
  • Ethernet cable, mounting adapter, sensor/actuator cable, power cable
• Air Pressure (Operation)
  • 80 kPa … 106 kPa (up to 2000 m above sea level)
• Air Pressure (Storage/Transport)
  • 80 kPa … 106 kPa (up to 2000 m above sea level)
• Ambient Temperature (Operation)*
  • -20 °C to 60 °C
• Ambient Temperature (Storage/Transport)
  • -20 °C to 60 °C
• Contact Base Material
  • M12, D-coded, CuSn, Gold-plated | M12 Power, L-coded, CuNi, Gold-plated
• Contact Bearer Material
  • PA / TPU
• Dimensions (W x H x D)
  • 60 mm x 31 mm x 200 mm
• Fastening Torque (Bus Connection)
  • M12: 0.5 Nm
• Fastening Torque (Fixing Screw)
  • M4: 1 Nm
• Fastening Torque (Ground Connection (FE))
  • M4: 1 Nm
• Fastening Torque (I/O Connection)
  • M12: 0.5 Nm
• Fastening Torque (Power Connection)
  • M12: 0.5 Nm
• Flammabilty Class
  • UL 94 (IEC 61010)
• Housing Color
  • Grey Metallic
• Housing Material
  • Metal, zinc die-cast
• Housing Plating
  • Nickel, matt
• Included in Delivery
  • Attachable Labels: 15x, Sealing Caps: 5x M12
• Mounting
  • 2 hole screw mounting. Use standard M4 x 25 / 30 screws with toothed lock washer (as per DIN 125) and self-locking nuts.
• O-Ring Material
  • FKM
• Permissible Humidity (Operation)
  • 5 % ... 95 % (For UL applications max. 80 %)
• Permissible Humidity (Storage/Transport)
  • 5 % ... 95 % (For UL applications max. 80 %)
• Pollution Degree
  • 3 acc. to EN 60664-1, VDE 0110-1
• Potted
  • Yes
• Protection Class
  • III, IEC 61140, EN 61140, VDE 0140-1
• Protection Degree / IP Rating**
  • IP65, IP67, IP69K
• Shock Resistance
  • 50 g / 11ms
• Vibration Resistance
  • 15 g / 5 -500 Hz
• Weight
  • 500 g

IIoT Protocols

• REST API
  • Cyclic data read/write, Diagnosis data, Event data

IO-Link Master Channels

• Connection
  • M12, 5-poles, A-coded
• Cycle Time / Update Rate
  • min. 1 ms for all channels at 32 Byte IN / OUT
• Diagnostic Indicator
  • LED red per port
• IO-Link Class A Ports
  • 8x, X1 to X8
• IO-Link Specification
  • V1.1.3
• Nominal Current 1L+ (Pin 1)
  • 2A
• Nominal Current C/Q (Pin 4)
  • 500mA
• Nominal Voltage
  • 24 V DC via US (system power supply)
• Number of IO-Link Master Channels
  • max. 8, configurable
• Parameter Storage
  • Supported
• Perm. Conductor Length to Device
  • ≤ 20 m
• Status Indicator
  • LED green per channel
• Supported COM Modes
  • 4.8 kBaud (COM 1), 38.4 kBaud (COM 2), 230.4 kBaud (COM 3)

Notes

• Protection Degree / IP Rating Note
  • only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
• System Power Supply Connection Note
  • do not connect / disconnect under voltage!
• Update and Revision
  • Revision Number: 0.56 Revision Date: 08-26-2021

Power Supply

• Connection Module Supply Voltage
  • M12 Power, 5-poles, L-coded
• Connection Sensor Supply Voltage
  • M12 Power, 5-poles, L-coded
• Diagnostic Indicator
  • LED red
• Module Supply Voltage (Nominal)
  • 24 V DC (SELV/PELV)
• Module Supply Voltage (Range)
  • 20V DC to 30 V DC
• Number of Connections
  • 2
• Reverse Polarity Protection
  • Yes
• Sensor Supply Voltage (Nominal)
  • 24 V DC (SELV/PELV)
• Sensor Supply Voltage (Range)
  • 20V DC to 30 V DC
• Status Indicator
  • LED green

Product Description

• Brand
  • Belden
• Bus Connection
  • M12, 4-poles, D-coded
• Device Type
  • IO-Link Master
• I/O Connection
  • M12, 5-poles, A-coded
• I/O Function
  • 8 IOL (Class A)
• I/O Type
  • IO-Link Master
• Item Description
  • 0980 LSL 3011-121-0006-001
• Part Number
  • 935701001
• Power Connection (System Supply)
  • M12 Power, 5-poles, L-coded
• Product Family
  • I/O Systems: Active - Standalone
• Product Sub Family
  • LioN-Xlight
• Protocol
  • PROFINET

PROFINET

• Addressing
  • DCP
• Conformance Class
  • C (CC-C)
• Connection
  • M12 4-poles, D-coded
• Cycle Time / Update Rate
  • min. 1 ms
• Easy Device Replacement
  • Supported, based on LLDP
• Fast Startup (FSU)
  • Supported, ≤ 4000 ms
• Media Redundancy Protocol (MRP)
  • Supported, MRP client
• Netload Class
  • III
• Number of Connections
  • 2
• Performance Class
  • RT (switch supports IRT)
• Protocol
  • PROFINET
• Shared Device
  • Supported
• Shared Input
  • not supported
• Specification
  • V2.3
• Supported Network Protocols (Other)
  • ARP, HTTP, Ping, SNMP V1, TCP/IP
• Topology Detection
  • LLDP, SNMP V3
• Transmission Method
  • 100 BASE-TX, with auto negotiation and auto crossing
• Transmission Rate
  • Fast Ethernet (10/100 Mbit/s), Full Duplex

Safety & Environmental Compliance

• CE
  • Yes
• China RoHS-Compliant
  • Yes
• RoHS Compliant
  • Yes
