Description

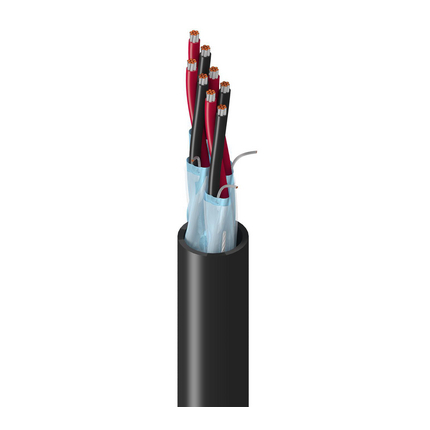

High Performance Instrumentation, 4 Pair 22AWG (7x30) Tinned Copper, PVC Insulation E2 Color Code, Individual Beldfoil® Shield, PVC Outer Jacket, PLTC-ERHigh Perform Instr, 4 Pr #22 Str TC, PVC Ins E2, IS, PVC Jkt, PLTC-ER
Belden 9330 0601000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- AWG Size
- 22
- Color
- Chrome
- Conductor Configuration
- 4 Pairs
- Conductor Count
- 8
- Conductor Material
- Tinned Copper
- Conductor Material and Stranding
- Tinned Copper - Stranded
- Country of Origin
- Mexico
- Environmental Space
- Indoor/Outdoor
- Insulation Material
- PVC
- Jacket
- PVC
- Material@InnerShield01
- Bi-Laminate (Alum+Poly)
- Material@Insulation01
- PVC - Polyvinyl Chloride
- Shielding
- Individually Foiled + No Overall
- Stranding@Conductor1
- 7x30
- Total Number of Pairs
- 4
- UL Temp Rating
- 105°C
- UL voltage rating
- 300 V RMS
Standard & Compliance
- CEC/C(UL) Compliance
- CMG
- China RoHS 2
- Yes
- CSA AWM Compliance
- 2464
- CSA AWM Specification
- 2464
- EU CE Mark
- Yes
- EU Directive 2011/65/EU (ROHS II)
- Yes
- EU Directive 2012/19/EU (WEEE)
- Yes
- EU Directive 2015/863/EU
- Yes
- EU RoHS Compliance Date (yyyy-mm-dd)
- 2005-04-01
- ICEA Flammability
- T-29-520
- IEEE Flammability
- 1202
- MII Order #39 (China RoHS)
- Yes
- NEC Articles
- Article 725;Article 727;Article 800
- NEC/(UL) Compliance
- CMG;ITC-ER;PLTC-ER
- Suitability - Burial
- Yes
- Suitability - Indoor
- Yes
- Suitability - Outdoor
- Yes
- Suitability - Sunlight Resistance
- Yes
- UL AWM Style
- AWM 2464 (300 V 80°C)
- UL AWM Style Compliance
- AWM 2464 (300 V 80°C)
- UL Flammability
- UL1685 FT4 Loading
