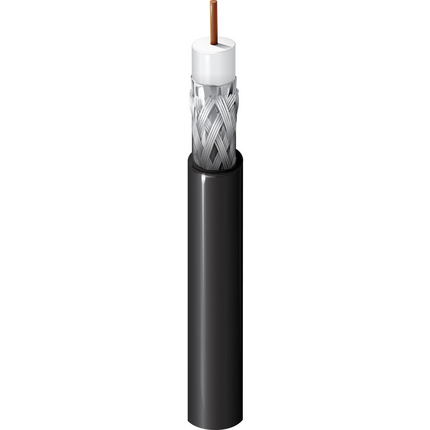

Belden 9116E.00305
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
COAX RG6 PVC CATV9116E.00305 - COAX RG6 PVC CATV
Belden 9116E.00305 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Applicable Environmental and Other Programs
- EU RoHS Compliance Date (yyyy-mm-dd)
- 1998-01-01
Construction and Dimensions
- Min Elongation at Breakof Jacket
- 150 %
- Min Tensile Strength of Jacket
- 12.5 MPa
Electrical Characteristics
- High Freq Table Note
- In each frequency band, 3 peak values up to 4 dB lower are allowed
Flammability, LS0H, Toxicity Testing
- ISO/IEC Flammability
- IEC 60332-1-2
History
- Update and Revision
- Revision Number: 0.159 Revision Date: 12-11-2019
Mechanical Characteristics
- Adhesion Dielectric
- 5 - 80 N at 25 mm N
- Crush Resistance
- Max. 1% (load of 700N) N
- Min Bend Radius During Operation
- 31 mm
- Min Bend Radius (W/o Pulling Strength)
- 70 mm
Physical Characteristics (Overall)
- Conductor Count
- 1
Product Overview
- Environmental Space
- Indoor - Euroclass Eca
- Suitable Applications
- Coaxial cable used in cable broadBand communication networks designed according the European Standard EN 50117-1; Operating at frequencies between 5 and 1000 MHz
Specifications
- Color
- Black
- Length
- 305 m
Standards
- CENELEC Compliance
- EN 50117-2-1, EN 50117-1 and EN 50290-2-20
- CPR Euroclass
- Eca
- ISO/IEC Compliance
- IEC 1196
- RG Type
- 6/U Type
Temperature Range
- Operating Temp Range
- -40°C To +70°C
- Storage Temp Range
- -40°C To +70°C
