Belden 88777
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

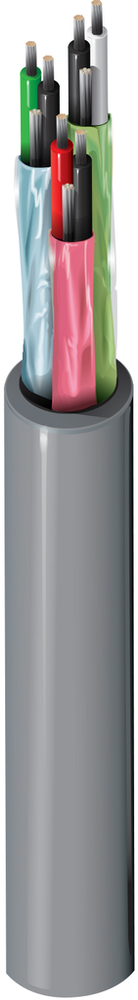

Audio, Control & Instrument Cable, 22 AWG stranded (7x30) tinned copper conductor, FEP insulation, twisted pairs individually shielded with Beldfoil® (100% coverage), overall jacket per table below, 22 AWG stranded tinned copper drain wire.Audio, Control & Instrument, #22-3pr, FEP, Indiv. Foil, FEP Jkt, CMP
Belden 88777 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- APAC Compliance
- China RoHS II (GB/T 26572-2011)
- CEC/C(UL) Compliance
- CMP
- CSA Flammability
- FT6
- NEC/(UL) Compliance
- CMP
- UL Flammability
- NFPA 262 Plenum Flame Test (UL910)
Specifications
- AWG Size
- 22
- Bulk Cable Weight
- 37 lbs/1000ft
- Conductor Configuration
- 3 Pair
- Conductor Count
- 6
- Conductor Material
- Tinned Copper
- Conductor Material and Stranding
- Tinned Copper - Stranded
- Conductor Size
- 22 AWG
- Environmental Suitability
- Indoor, Oil Resistance, Burial
- Insulation Material
- FEP
- Jacket
- FEP
- Material
- FEP - Fluorinated Ethylene Propylene
- Material@InnerShield01
- Bi-Laminate (Alum+Poly)
- Material@Insulation01
- FEP - Fluorinated Ethylene Propylene
- Min Bend Radius During Installation
- 2.3 in
- Operating Temp Range
- -70°C to +200°C
- Plenum
- Yes
- Region available
- Global
- Shielding
- Individually Foiled + No Overall
- Stranding@Conductor1
- 7x30
- UL Temp Rating
- 150°C
- UL voltage rating
- 300 V
