Belden 8760NH.00152
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

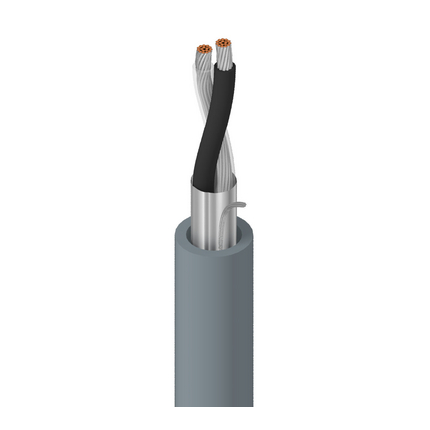

Electronic, 2 Conductor 18AWG (16x30) Tinned Copper, PO Insulation, Overall Beldfoil® Shield, LSZH Outer Jacket8760NH.00152 - Electronic, 2 C #18 Str TC, PE Ins, OS, LSZH Jkt
Belden 8760NH.00152 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Applicable Environmental and Other Programs
- Environmental Space
- Indoor - Euroclass B2ca
- EU CE Mark
- Yes
- EU Directive 2000/53/EC (ELV)
- Yes
- EU Directive 2003/96/EC (BFR)
- Yes
- EU Directive 2011/65/EU (RoHS 2)
- Yes
- EU Directive 2012/19/EU (WEEE)
- Yes
- EU Directive 2015/863/EU (RoHS 2 amendment)
- Yes
- EU Directive Compliance
- EU Directive 2003/11/EC (BFR)
Flammability, LS0H, Toxicity Testing
- IEC 60754-1 (EN50267-1)- Halogen Amount
- Zero
- IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity
- 2.5 µS/mm
- IEC 60754-2 - Halogen Acid Gas Amount - Min. pH
- 4.3
- IEC 61034-2 (EN 61034-2) (VDE 0482-1034) - Smoke Density Min. Transmittance
- 60%
- IEC Flammability
- IEC 60332-1-2 and IEC 60332-3-24
History
- Update and Revision
- Revision Number: 0.440 Revision Date: 09-10-2021
Mechanical Characteristics
- Bulk Cable Weight
- 27 lbs/1000ft
- Max. Pull Tension
- 280 N
- Min. Bend Radius/Minor Axis
- 60 mm
- Oil Resistance
- IEC 60811-404
Part Number
- Footnote
- C - CRATE REEL PUT-UP.
Plenum/Non-Plenum
- Plenum (Y/N)
- No
Product Overview
- Suitable Applications
- low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring
Specifications
- Color
- Chrome
- EAN
- 8719605018885
- Length
- 152 m
- Put-Up Type
- Reel
Standards
- CENELEC Compliance
- EN 50290-2-27
- CPR Euroclass
- B2ca-s1,d1,a1
Suitability
- Suitability - Indoor
- Yes
- Suitability - Non-Halogenated
- Yes
- Suitability - Sunlight Resistance
- Yes
Temperature Range
- Operating Temp Range (Fixed Install)
- -45°C To +80°C
- Operating Temp Range (Flexible Install)
- -15°C To +80°C
