Belden 8719.00U152
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

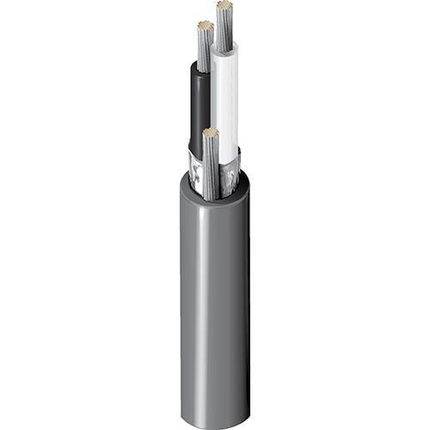

16 AWG stranded (19x29) TC conductors, polyethylene insulation, twisted pair, overall Beldfoil® shield (100% coverage), 18 AWG stranded TC drain wire, PVC jacket.Electronic, 2 C #16 Str TC, PE Ins, OS, PVC Jkt, CM
Belden 8719.00U152 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- AWG Size
- 16
- Color
- Chrome
- Conductor Configuration
- 1 Pair
- Conductor Count
- 2
- Conductor Material
- Tinned Copper
- Conductor Material and Stranding
- Tinned Copper - Stranded
- EAN
- 8719605018397
- Insulation Material
- Polyolefin (PO, PE, PP)
- Jacket
- PVC
- Length
- 152 m
- Material@Insulation01
- PE - Polyethylene
- Put-Up Type
- UnReel
- Shielding
- Foil(s) or Copper Tape(s)
- Stranding@Conductor1
- 19x29
- Total Number of Pairs
- 1
- UL Temp Rating
- 80°C (UL AWM Style 20253)
- UL voltage rating
- 600 V
Standard & Compliance
- CEC/C(UL) Compliance
- CM
- China RoHS 2
- Yes
- CPR Euroclass
- Eca
- CSA Flammability
- FT1
- EU CE Mark
- Yes
- EU Directive 2011/65/EU (ROHS II)
- Yes
- EU Directive 2012/19/EU (WEEE)
- Yes
- EU Directive 2015/863/EU
- Yes
- EU RoHS Compliance Date (yyyy-mm-dd)
- 2001-01-01
- ISO/IEC Flammability
- IEC 60332-1-2
- MII Order #39 (China RoHS)
- Yes
- NEC Articles
- Article 725;Article 800
- NEC/(UL) Compliance
- CL2;CM
- Suitability - Indoor
- Yes
- UKCA Mark
- Yes
- UL AWM Style
- AWM 20253
- UL AWM Style Compliance
- AWM 20253
- UL Flammability
- UL 1685 UL loading
