Belden 8451 010500
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description

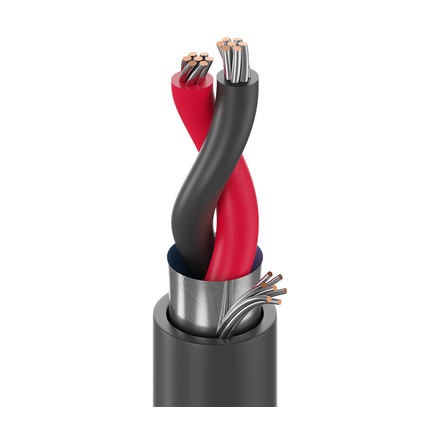

22 AWG stranded (7x30) TC conductors, polypropylene insulation, paper wrap, twisted pair, overall Beldfoil shield (100% coverage), 22 AWG stranded TC drain wire, PVC jacket.Audio & Instrumentation, 1 Pair 22 AWG, TC, O/A Foil, CM
Belden 8451 010500 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- AWG Size
- 22
- Color
- Black
- Conductor Configuration
- 1 Pair
- Conductor Count
- 2
- Conductor Material
- Tinned Copper
- Conductor Material and Stranding
- Tinned Copper - Stranded
- Country of Origin
- Mexico
- Environmental Space
- Indoor - Riser
- Insulation Material
- Polyolefin (PO, PE, PP)
- Jacket
- PVC
- Length
- 500 ft
- Material@Insulation01
- PP - Polypropylene
- Put-Up Type
- Reel
- Shielding
- Multiple or Specialty
- Stranding@Conductor1
- 7x30
- Total Number of Pairs
- 1
- UL voltage rating
- 300 V
Standard & Compliance
- CEC/C(UL) Compliance
- CMG
- China RoHS 2
- Yes
- CPR Euroclass
- Eca
- CPR UKCA Class
- Eca
- EU CE Mark
- Yes
- EU Directive 2011/65/EU (ROHS II)
- Yes
- EU Directive 2012/19/EU (WEEE)
- Yes
- EU Directive 2015/863/EU
- Yes
- EU RoHS Compliance Date (yyyy-mm-dd)
- 2004-01-01
- ISO/IEC Flammability
- IEC 60332-1-2
- MII Order #39 (China RoHS)
- Yes
- NEC Articles
- Article 800
- NEC/(UL) Compliance
- CMR
- Suitability - Indoor
- Yes
- UKCA Mark
- Yes
- UL Flammability
- UL 1666 Riser
