Description

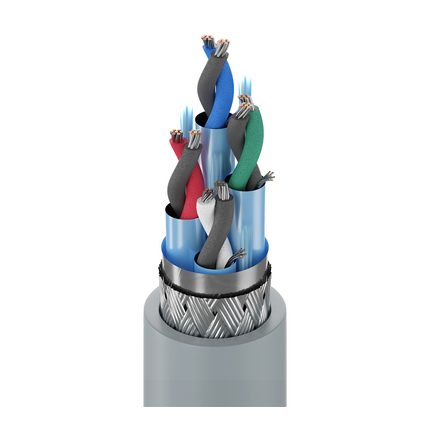

Computer EIA RS-232/422, Digital Audio Cable, 24 AWG stranded (7x32) tinned copper conductors, Datalene® insulation, 4 twisted pairs individually Beldfoil® shielded + overall 100% Beldfoil® + tinned copper braid shield (65% coverage), drain wire, PVC jacket.RS232/422 Low Cap, #24-4pr, FPO, Indiv.& O/A Foils+Braid, PVC Jkt, CM, 100Ω
Belden 8164.00152 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- AWG Size
- 24
- Color
- Chrome
- Conductor Configuration
- 4 Pairs
- Conductor Count
- 8
- Conductor Material
- Tinned Copper
- EAN
- 8719605017963
- Environmental Space
- Indoor (Not Riser or Plenum)
- Insulation Material
- Polyolefin (PO, PE, PP)
- Jacket
- PVC
- Length
- 152 m
- Material@InnerShield01
- Bi-Laminate (Alum+Poly)
- Material@Insulation01
- PE - Polyethylene (Foam)
- Material@OuterShield1 2
- Tinned Copper (TC)
- Put-Up Type
- Reel
- Shielding
- Individually Foiled + Overall Foil + Braid
- Stranding@Conductor1
- 7x32
- UL Temp Rating
- 60°C
- UL voltage rating
- 300 V
Standard & Compliance
- CEC/C(UL) Compliance
- CM
- China RoHS 2
- Yes
- CPR Euroclass
- Eca
- CPR UKCA Class
- Eca
- EU CE Mark
- Yes
- EU Directive 2011/65/EU (ROHS II)
- Yes
- EU Directive 2012/19/EU (WEEE)
- Yes
- EU RoHS Compliance Date (yyyy-mm-dd)
- 2004-01-01
- ISO/IEC Flammability
- IEC 60332-1-2
- MII Order #39 (China RoHS)
- Yes
- NEC Articles
- Article 800
- NEC/(UL) Compliance
- CM
- Suitability - Indoor
- Yes
- UKCA Mark
- Yes
- UL AWM Style
- AWM 2493
- UL AWM Style Compliance
- AWM 2493
- UL Flammability
- UL 1685 FT4 Loading
