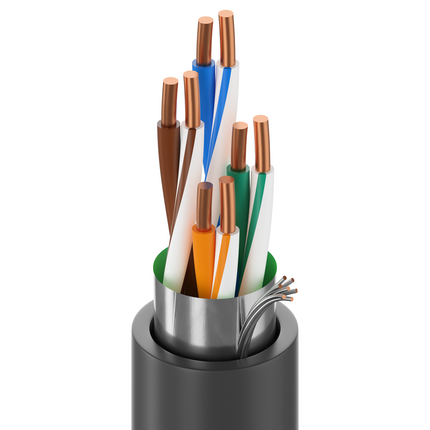

Belden 7919A 0101000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Industrial Ethernet Cat 5e, 4 Pair 24AWG (Solid) Bare Copper, PO Insulation, Overall Beldfoil® Shield, PVC Outer Jacket, MSHA CMRDataTuff® Cat 5e, 4 Pr #24 Sol BC, PO Ins, OS, PVC Jkt, MSHA CMR
Belden 7919A 0101000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- AWG Size
- 24
- Color
- Black
- Conductor Configuration
- 4 Pairs
- Conductor Count
- 8
- Conductor Material
- Bare Copper
- Country of Origin
- Mexico
- Environmental Space
- Indoor/Outdoor
- Insulation Material
- Polyolefin (PO, PE, PP)
- Jacket
- PVC
- Length
- 1000 ft
- Material@Insulation01
- PO - Polyolefin
- Put-Up Type
- Reel
- Shielding
- F/UTP - Overall Foil
- Stranding@Conductor1
- Solid
- Total Number of Pairs
- 4
- UL Temp Rating
- 60°C
- UL voltage rating
- 300 V RMS
Standard & Compliance
- CEC/C(UL) Compliance
- CMX-Outdoor
- China RoHS 2
- Yes
- CPR Euroclass
- Eca
- CSA Flammability
- FT4
- Environmental Product Declaration (EPD)
- No
- EU CE Mark
- Yes
- EU Directive 2011/65/EU (ROHS II)
- Yes
- EU Directive 2012/19/EU (WEEE)
- Yes
- EU Directive 2015/863/EU
- Yes
- EU REACH SVHC Compliance (yyyy-mm-dd)
- 2020-01-16
- EU RoHS Compliance Date (yyyy-mm-dd)
- 2004-01-01
- IEEE Flammability
- IEEE 1202 Vertical Tray Flame Test
- ISO/IEC Flammability
- IEC 60332-1-2
- MII Order #39 (China RoHS)
- Yes
- NEC Articles
- Article 800
- NEC/(UL) Compliance
- CMR;CMX-Outdoor
- NEMA Specification
- NEMA WC-63.1
- PMSHA Specification
- P-07-KA060004-MSHA
- REACH
- Yes
- Suitability - Aerial
- Yes
- Suitability - Burial
- No
- Suitability - Indoor
- Yes
- Suitability - Non-Halogenated
- No
- Suitability - Oil Resistance
- Yes
- Suitability - Outdoor
- Yes
- Suitability - Sunlight Resistance
- Yes
- Telecommunications Standards
- ANSI/TIA-568.2-D Category 5e
- UKCA Mark
- Yes
- UL Flammability
- UL1666 Riser
