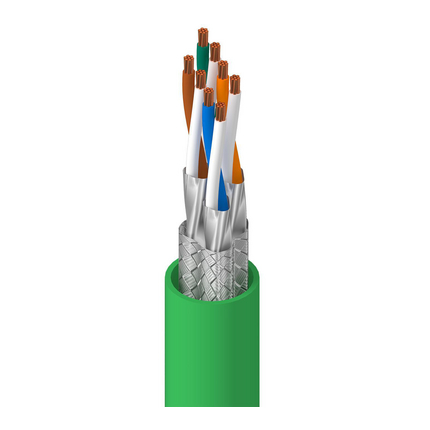

Belden 74011PU.00100
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Belden 74011PU.00100 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Color
- Green
- Conductor Configuration
- 4 Pairs
- Conductor Count
- 8
- Conductor Material
- Bare Copper
- Conductor Material and Stranding
- Bare Copper - Stranded
- EAN
- 8719605130235
- Environmental Space
- Indoor - Euroclass Fca
- Insulation Material
- Polyolefin (PO, PE, PP)
- Jacket
- PUR Halogen Free
- Length
- 100 m
- Material@InnerShield01
- Bi-Laminate (Alum+Poly)
- Material@Insulation01
- PE - Polyethylene (Foam)
- Put-Up Type
- Reel
- Shielding
- S/FTP - Overall Braid / Individual Foil
- Storage Temperature Range
- -40°C to +80°C
- Stranding@Conductor1
- Stranded
- Total Number of Pairs
- 4
Standard & Compliance
- CENELEC Compliance
- EN 50173-1
- CPR Euroclass
- Eca
- CPR UKCA Class
- Eca
- EU CE Mark
- Yes
- EU RoHS Compliance Date (yyyy-mm-dd)
- 2017-04-12
- IEC 60754-1 - Halogen Amount
- Zero
- ISO/IEC Compliance
- ISO/IEC 11801-1
- ISO/IEC Flammability
- IEC 60332-1-2
- Oil Resistance
- IEC 60811-404
- Suitability - Burial
- No
- Suitability - Indoor
- Yes
- Suitability - Oil Resistance
- Yes
- Suitability - Outdoor
- Yes - Black only
- Suitability - Sunlight Resistance
- Yes - Black only
- UKCA Mark
- Yes
- UL Flammability
- Horizontal
