Belden 74004PU.01305
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

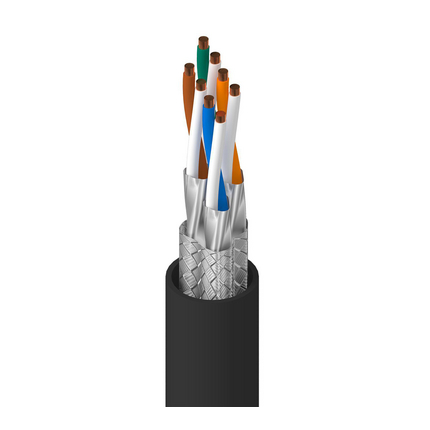

DataTuff® 7, 4 Pair AWG 23 Bare Copper - Solid, Polyethylene insulation, S/FTP - Overall Braid / Individual Foil shielding, PUR Halogen Free jacket , AWM 20549DataTuff® 7, 4PR #23 Sol BC, PO ins, S/FTP, PUR HF jkt, AWM 20549
Belden 74004PU.01305 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- AWG Size
- 23
- Color
- Black
- Conductor Configuration
- 4 Pairs
- Conductor Count
- 8
- Conductor Material
- Bare Copper
- Conductor Material and Stranding
- Bare Copper - Solid
- EAN
- 8719605013224
- Environmental Space
- Indoor
- Insulation Material
- Polyolefin (PO, PE, PP)
- Jacket
- PUR Halogen Free
- Length
- 305 m
- Material@InnerShield01
- Bi-Laminate (Alum+Poly)
- Material@Insulation01
- PE - Polyethylene (Foam)
- Put-Up Type
- Reel
- Shielding
- S/FTP - Overall Braid / Individual Foil
- Storage Temperature Range
- -40°C To +80°C
- Stranding@Conductor1
- Solid
- Total Number of Pairs
- 4
Standard & Compliance
- CENELEC Compliance
- EN 50173-1
- CSA Flammability
- FT2
- EU CE Mark
- Yes
- EU RoHS Compliance Date (yyyy-mm-dd)
- 2016-01-22
- IEC 60754-2-Halogen Acid Gas Amt-Max Con
- 10 µS/mm
- IEC 60754-2-Halogen Acid Gas Amt-Min pH
- 4.3
- IEC 61034-2 - Smoke Density Min Trans
- 60 %
- IEEE Specification
- PoE: IEEE 802.3bt Type 1, Type 2, Type 3, Type 4
- ISO/IEC Compliance
- ISO/IEC 11801-1
- Oil Resistance
- IEC 60811-2-1
- Suitability - Burial
- No
- Suitability - Indoor
- Yes
- Suitability - Oil Resistance
- Yes
- Suitability - Outdoor
- Yes - Black only
- Suitability - Sunlight Resistance
- Yes
- Telecommunications Standards
- ANSI/TIA 568.2-D
- UL AWM Style
- AWM 21292
- UL AWM Style Compliance
- AWM 21292
