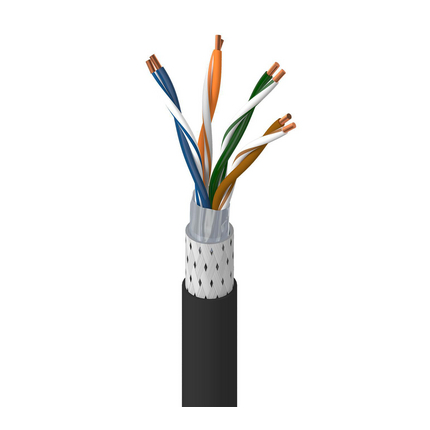

Belden 74001E.01305
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
DataTuff® 5E, 4 Pair AWG 24 Bare Copper - Solid, Polyethylene insulation, SF/UTP - Overall Braid + Foil shielding, PVC jacket , AWM 2464DataTuff® 5E, 4PR #24 Sol BC, PO ins, SF/UTP, PVC jkt, AWM 2464
Belden 74001E.01305 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- AWG Size
- 24
- Color
- Black
- Conductor Configuration
- 4 Pairs
- Conductor Count
- 8
- Conductor Material
- Bare Copper
- Conductor Material and Stranding
- Bare Copper - Solid
- EAN
- 8719605012944
- Environmental Space
- Indoor - Euroclass Eca
- Insulation Material
- Polyolefin (PO, PE, PP)
- Jacket
- PVC
- Length
- 305 m
- Material@Insulation01
- PE - Polyethylene
- Material@OuterShield1 2
- Tinned Copper (TC)
- Put-Up Type
- Reel
- Shielding
- SF/UTP - Overall Braid + Foil
- Storage Temperature Range
- -40°C To +80°C
- Stranding@Conductor1
- Solid
- Total Number of Pairs
- 4
Standard & Compliance
- CENELEC Compliance
- EN 50173-1
- CPR Euroclass
- Eca
- CPR UKCA Class
- Eca
- EU CE Mark
- Yes
- EU RoHS Compliance Date (yyyy-mm-dd)
- 2016-01-08
- IEEE Specification
- PoE: IEEE 802.3bt Type 1, Type 2, Type 3
- ISO/IEC Compliance
- ISO/IEC 11801-1
- ISO/IEC Flammability
- IEC 60332-1-2
- Oil Resistance
- IEC 60811-2-1
- Suitability - Burial
- No
- Suitability - Indoor
- Yes
- Suitability - Oil Resistance
- Yes
- Suitability - Outdoor
- Yes - Black only
- Suitability - Sunlight Resistance
- Yes - Black only
- Telecommunications Standards
- ANSI/TIA 568.2-D
- UKCA Mark
- Yes
- UL AWM Style
- AWM 2464
- UL AWM Style Compliance
- AWM 2464
