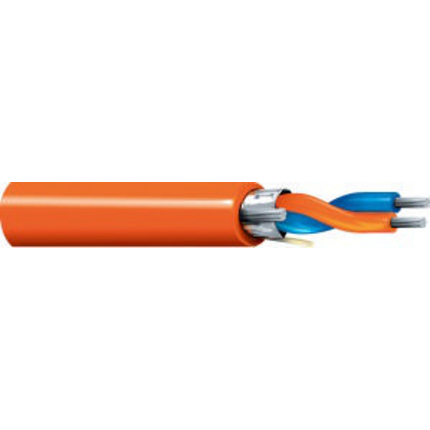

Belden 70001NH.00120
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
AWG18 (7xAWG26) tinned copper70001NH.00120 - IDS LSZH
Belden 70001NH.00120 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Applicable Environmental and Other Programs
- EU RoHS Compliance Date (yyyy-mm-dd)
- 2015-10-28
Flammability, LS0H, Toxicity Testing
- Amount of Halogen acc. to IEC 60754-1 & EN50267-1
- Zero
- ISO/IEC Flammability
- IEC 60332-3-24
History
- Update and Revision
- Revision Number: 0.164 Revision Date: 12-11-2019
Mechanical Characteristics
- Max Recommended Pulling Tension
- 260 N
- Min Bend Radius During Installation
- 120 mm
- Min Setting Radius
- 80 mm
- Oil Resistance
- IEC 60811-2-1
Physical Characteristics (Overall)
- Conductor Count
- 2
- Total Number of Pairs
- 1
Product Overview
- Environmental Space
- Indoor
- Suitable Applications
- Instrumentation and computer cable; For data transmission applications; Profibus PA Cable
Specifications
- Color
- Black
- Length
- 120 m
Standards
- CENELEC Compliance
- EN 50290-2-27
- Other Specification
- BS 7655 section 6.1 table 1, LTS 3
Temperature Range
- Installation Temp Range
- -15°C To +70°C
- Operating Temp Range (Fixed Install)
- -45°C To +70°C
- Operating Temp Range (Flexible Install)
- -15°C To +70°C
- Storage Temp Range
- -45°C To +70°C
