Belden 58615
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

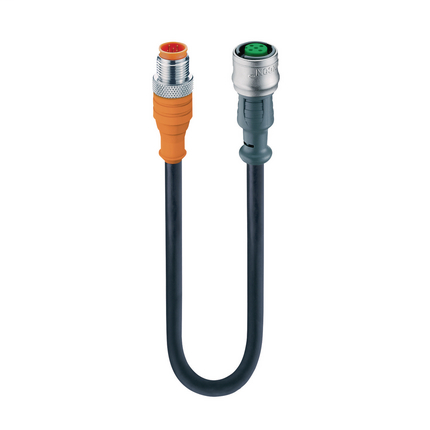

Sensor/Actuator Double-Ended Cordset: Male straight A-coded orange 5-pin M12 Standard connector to female straight A-coded grey 5-pin M12 FIXCON connector, 50 V AC / 60 V DC, 4 A; PUR black cable, 5-wires, 0.50 mm²58615 - RST 5-FKT 5-411 - Sensor/Actuator Double-Ended Cordset: Male straight A-coded orange 5-pin M12 Standard connector to female straight A-coded grey 5-pin M12 FIXCON connector, 50 V AC / 60 V DC, 4 A; PUR black cable, 5-wires, 0.50 mm²
Belden 58615 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Cable Data
- Ambient Temperature (Drag Chain Inst)
- 25 °C - + 60 °C
- Ambient Temperature (Fixed Installation)
- 50 °C - + 80 °C
- Ambient Temperature (Flex Installation)
- 25 °C - + 80 °C
- Cable Characteristics
- Good microbes and hydrolysis resistance; Mainly plasticizer diffusion free; Exclusion of PVC and silicone; Free of lacquer wetting disturbing substances; Coldness Flexibilty
- Cable Diameter D
- ø 5.40 ± 0.20 mm
- Cable Jacket Color
- black matt similarly RAL 9005
- Cable Jacket Material
- PUR
- Cable Number
- 411
- Conductor material
- Cu
- Cycles (Bending)
- ˃ 2 M
- Flammability Class (Cable Jacket)
- DIN EN 60332-2-2, VDE 0482-332-2-2, IEC 60332-2-2, CSA FT-2
- Insulated Wire Diameter
- ø 1.50 ± 0.05 mm
- Minimal Bending Radius (Fixed Inst)
- ˃ 5 x D
- Minimal Bending Radius (Flexible Inst)
- ˃ 10 x D
- Number of Wires
- 5
- UL Cable Type
- AWM: 20549
- Wire Insulation Material
- PP
Notes
- Note Derating
- Notice derating
- Protection Degree / IP Rating Note
- only if mounted and locked in combination with Hirschmann / Lumberg Automation connector
Product Description
- Brand
- Lumberg Automation
- Connector Type
- Cordset, double ended
- Operating Voltage
- 50 V AC / 60 V DC
- Product Family
- Sensor / Actuator Connectors
- Rated Current
- 4 A
- Rated Impulse Voltage
- 1.5 kV
- Rated Voltage
- 60 V
- Shielding
- Unshielded
Resistances
- Halogenfree
- DIN EN 50267-2-1, IEC 60754-1, VDE 0482-267-2-1
- Oil Resistance
- Good chemical and oil resistance
Safety & Environmental Compliance
- RoHS Compliant
- yes
Specifications
- Cable Length
- 1.6 m
- Item Description
- RST 5-FKT 5-411/1,6 M
Technical Data Side 1
- Ambient Temperature (Operation)
- 25 °C - + 85 °C
- Attachment Material
- CuZn
- Attachment Plating
- Nickel-plated
- Attachment Type
- Coupling Screw
- Coding
- A
- Connector Design
- Straight
- Contact Base Material
- CuSn
- Contact Bearer Color
- Orange
- Contact Bearer Material
- TPU-GF
- Contact Plating
- Cu/Au
- Contact Resistance
- ≤ 10 mOhm
- Design Standard
- IEC 61076-2-101
- Fastening Torque (Attachment)
- M 12x1: (50-60) Ncm, hand-tight
- Flammability Class (Contact Bearer)
- UL 94 HB
- Flammability Class (Molded Body)
- UL 94 HB
- Insulation Resistance
- ˃ 10^9 Ohm
- Mating Cycles
- ≤ 100
- Molded Body Color
- Orange
- Molded Body Material
- TPU
- Note
- Do not connect or disconnect under load.
- Number of Pins
- 5
- Overvoltage Category
- III acc. to DIN EN 60664-1 (VDE 0110-1)
- Pollution Degree
- 3 acc. to DIN EN 60664-1 (VDE 0110-1)
- Product Sub Family
- M12 Standard
- Protection Degree / IP Rating
- IP65, IP67
- Type of Contact / Gender
- Male
Technical Data Side 2
- Ambient Temperature (Operation), Side 2
- 25 °C - + 85 °C
- Attachment Material, Side 2
- GD-Zn (Die-Cast)
- Attachment Plating, Side 2
- Nickel-plated
- Attachment Type, Side 2
- Coupling Nut (FIXCON)
- Coding, Side 2
- A
- Connector Design, Side 2
- Straight
- Contact Base Material, Side 2
- CuSn
- Contact Bearer Color, Side 2
- Green RAL 6018
- Contact Bearer Material, Side 2
- TPU-GF
- Contact Plating, Side 2
- Cu/Au
- Contact Resistance, Side 2
- ≤ 10 mOhm
- Design Standard, Side 2
- IEC 61076-2-101
- Fastening Torque (Attachment), Side 2
- M 12x1: (50-60) Ncm, hand-tight
- Flammability Class (Contact Bearer), Side 2
- UL 94 HB
- Flammability Class (Molded Body), Side 2
- UL 94 HB
- Insulation Resistance, Side 2
- ˃ 10^9 Ohm
- Mating Cycles, Side 2
- ≤ 100
- Molded Body Color, Side 2
- Grey
- Molded Body Material, Side 2
- TPU
- Number of Pins, Side 2
- 5
- Overvoltage Category, Side 2
- III acc. to DIN EN 60664-1 (VDE 0110-1)
- Pollution Degree, Side 2
- 3 acc. to DIN EN 60664-1 (VDE 0110-1)
- Product Sub Family, Side 2
- M12 FIXCON
- Protection Degree / IP Rating, Side 2
- IP65, IP67
- Type of Contact / Gender, Side 2
- Female
