Belden 4925
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

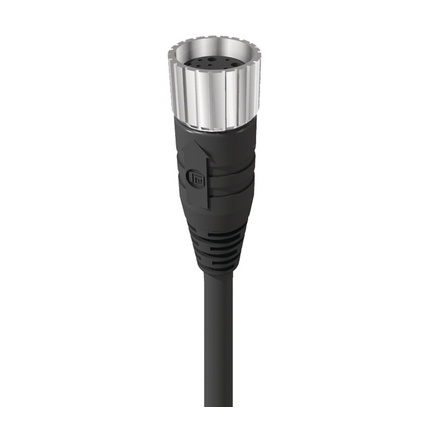

M23 Power Single-Ended Cordset: Female, straight, 19-pin, black body, 120 V AC/DC, 16x8 A + 3x10 A; PUR black cable, 16x0.5 mm² + 3x1.0 mm²4925 - RKU 19-242 - M23 Power Single-Ended Cordset: Female, straight, 19-pin, black body, 120 V AC/DC, 16x8 A + 3x10 A; PUR black cable, 16x0.5 mm² + 3x1.0 mm²
Belden 4925 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Cable Data
- Ambient Temperature (Drag Chain Inst)
- max. +60°C
- Ambient Temperature (Fixed Installation)
- -50°C to +80°C
- Ambient Temperature (Flex Installation)
- -25°C to +80°C
- Cable Diameter D
- Ø 11.60 ±0.30 mm
- Cable Jacket Color
- black
- Cable Jacket Material
- PUR
- Cable Number
- 242
- Conductor material
- Cu
- Cycles (Bending)
- ˃ 2 M
- Flammability Class (Cable Jacket)
- IEC 60332-2, VDE 0482-265-2-2, EN 50265-2-2, FT2; flame-retardant
- Insulated Wire Diameter
- 16x Ø1.45 mm + 3x Ø1.95 mm
- Minimal Bending Radius (Fixed Inst)
- ˃ 5 x D
- Minimal Bending Radius (Flexible Inst)
- ˃ 10 x D
- Number of Wires
- 19
- UL Cable Type
- AWM: 21198 / 20549
- Wire Insulation Material
- PP
Materials
- Attachment Material
- CuZn, nickel-plated
- Contact Base Material
- 16 x CuSn/3 x CuZn
- Contact Bearer Color
- black
- Contact Bearer Material
- PA 66
- Contact Plating
- Cu/Au
- Flammability Class (Contact Bearer)
- UL 94-HB
- Flammability Class (Molded Body)
- UL 94-HB
- Molded Body Color
- black
- Molded Body Material
- TPU
- O-Ring Material
- FKM
Notes
- Note
- Do not connect / disconnect under load.
- Note Derating
- Notice derating
- Particularities
- When the connector is unlocked and in risk of pollution the connector has to be covered with a protective cap ≥ IP54.
- Protection Degree / IP Rating Note
- only if mounted and locked in combination with Hirschmann / Lumberg connector.
Resistances
- Halogenfree
- IEC 60754-1, VDE 0482-267, EN 50267-2-1
Safety & Environmental Compliance
- RoHS Compliant
- yes
Specifications
- Cable Length
- 60 m
- Item Description
- RKU 19-242/60 M
Technical Data
- Ambient Temperature (Operation)
- -25°C to +80°C
- Attachment Type
- Coupling Nut
- Brand
- Lumberg Automation
- Clearance / Creepage Distance
- acc. to DIN EN 60664-1 (VDE 0110-1)
- Connector Design
- straight
- Connector Type
- Cordset, single ended
- Insulation Resistance
- ˃ 10^9 Ohm
- Mating Cycles
- ≤ 100
- Number of Pins
- 19
- Operating Voltage
- 120 V AC/DC
- Overvoltage Category
- II acc. to DIN EN 60664-1 (VDE 0110-1)
- Pollution Degree
- 3 acc. to DIN EN 60664-1 (VDE 0110-1)
- Product Family
- Power Connector
- Product Sub Family
- M23 Power
- Protection Degree / IP Rating
- IP67
- Rated Current
- 16 x 8 A (pin-Ø 1 mm), 3 x 10 A (contact-Ø 1.5 mm)
- Rated Impulse Voltage
- 1.5 kV
- Rated Voltage
- 125 V
- Shielding
- Unshielded
- Type of Contact / Gender
- female
