Belden 4504FE.00100
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

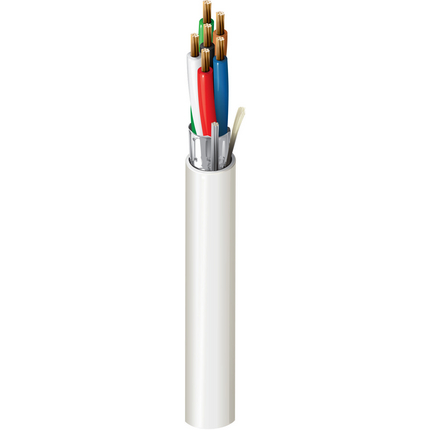

Security & Commercial Audio Cable, 6-22 AWG stranded bare copper conductors with polypropylene insulation, Beldfoil® shield, LSZH jacket with ripcord, CPR Eca4504FE.00100 - Security & Sound, 6 Conductor 22 AWG BC, LSZH, Shielded, Eca
Belden 4504FE.00100 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Applicable Environmental and Other Programs
- Environmental Space
- Indoor - Euroclass Eca
Flammability, LS0H, Toxicity Testing
- IEC 60754-1 (EN50267-1)- Halogen Amount
- Zero
- IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity
- 2.5 µS/mm
- IEC 60754-2 - Halogen Acid Gas Amount - Min. pH
- 4.3
- IEC 61034-2 (EN 61034-2) (VDE 0482-1034) - Smoke Density Min. Transmittance
- 60%
- IEC Flammability
- IEC 60332-1-2
History
- Update and Revision
- Revision Number: 0.275 Revision Date: 09-10-2021
Mechanical Characteristics
- Max. Pull Tension
- 100 N
- Min. Bend Radius During Installation
- 44 mm
- Min Setting Radius
- 22 mm
Product Overview
- Suitable Applications
- Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls, Noisy Environment
Specifications
- Color
- Gray
- EAN
- 8719605007186
- Length
- 100 m
- Put-Up Type
- Reel
Standards
- CPR Euroclass
- Eca
Temperature Range
- Installation Temp Range
- -20°C To +70°C
- Operating Temp Range
- -20°C To +70°C
- Storage Temp Range
- -30°C To +70°C
