Belden 3105A.00152
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

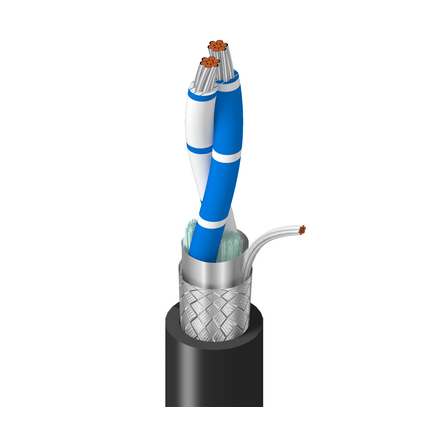

22 AWG stranded (7x30) tinned copper conductors, Datalene® insulation, twisted pairs, overall Beldfoil® shield (100% coverage) plus a tinned copper braid (65% coverage), drain wire, UV resistant PVC jacket.RS-485, 1 Pr, 22AWG, Str TC, PE Ins, OS+TC Brd, PVC Jkt, CM, PLTC, Sun Res, Oil Resistant
Belden 3105A.00152 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- AWG Size
- 22
- Color
- Black
- Conductor Configuration
- 1 Pair
- Conductor Count
- 2
- Conductor Material
- Tinned Copper
- EAN
- 8719605005816
- Insulation Material
- Polyolefin (PO, PE, PP)
- Jacket
- PVC
- Length
- 152 m
- Material@Insulation01
- PE - Polyethylene (Foam)
- Material@OuterShield1 2
- Tinned Copper (TC)
- Put-Up Type
- Reel
- Shielding
- Foil + Braid(s)
- Stranding@Conductor1
- 7x30
- UL Temp Rating
- 60°C
- UL voltage rating
- 300 V RMS (NEC Type PLTC)
Standard & Compliance
- CEC/C(UL) Compliance
- CM
- China RoHS 2
- Yes
- CPR Euroclass
- Eca
- CPR UKCA Class
- Eca
- CSA Flammability
- FT1
- EU CE Mark
- Yes
- EU Directive 2011/65/EU (ROHS II)
- Yes
- EU Directive 2012/19/EU (WEEE)
- Yes
- EU Directive 2015/863/EU
- Yes
- EU RoHS Compliance Date (yyyy-mm-dd)
- 2005-10-01
- ISO/IEC Flammability
- IEC 60332-1-2
- MII Order #39 (China RoHS)
- Yes
- NEC Articles
- Article 725;Article 800
- NEC/(UL) Compliance
- CM;PLTC
- Suitability - Indoor
- Yes
- Suitability - Oil Resistance
- Yes
- Suitability - Outdoor
- Yes
- Suitability - Sunlight Resistance
- Yes
- UKCA Mark
- Yes
- UL Flammability
- UL 1685 UL Loading
