Belden 2203ELV.00500
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

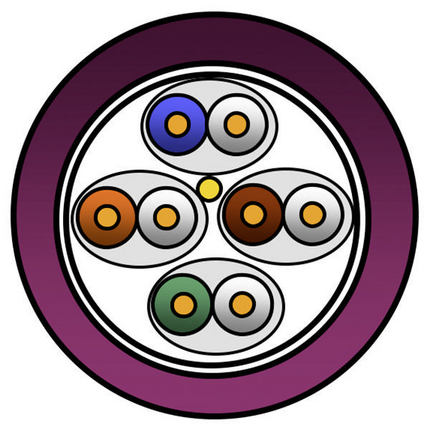

Category 6A (500MHz), 4-Pair, U/FTP shielded, Premise Horizontal Cable, 23 AWG Solid Bare Copper conductors, Foam Polyethylene insulation, each pair with Beldfoil® shield, AWG 26 solid tinned copper drainwire, LSZH jacket, CPR Euroclass B2ca2203ELV.00500 - Cat 6A Cable, U/FTP, LSZH, 4 Pair, AWG 23, Indoor CPR B2ca
Belden 2203ELV.00500 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Applicable Environmental and Other Programs
- Environmental Space
- Indoor - Euroclass B2ca
- EU RoHS Compliance Date (yyyy-mm-dd)
- 2018-01-04
Construction and Dimensions
- Min Elongation at Breakof Conductors
- 10 %
- Min Elongation at Breakof Insulation
- 100 %
- Min Elongation at Breakof Jacket
- 100 %
- Min Tensile Strength of Jacket
- 9 MPa
Flammability, LS0H, Toxicity Testing
- Burning Load
- 565 kJ/m
- IEC 60754-1 (EN50267-1)- Halogen Amount
- Zero
- IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity
- 2.5 µS/mm
- IEC 60754-2 - Halogen Acid Gas Amount - Min. pH
- 4.3
- IEC 61034-2 (EN 61034-2) (VDE 0482-1034) - Smoke Density Min. Transmittance
- 80%
- IEC Flammability
- IEC 60332-1-2
History
- Update and Revision
- Revision Number: 0.142 Revision Date: 09-13-2021
Mechanical Characteristics
- Bulk Cable Weight
- 51 kg/km
- Max. Pull Tension
- 79 N
- Min. Bend Radius During Installation
- 66 mm
- Min Bend Radius During Operation
- 33 mm
Product Notes
- Notes
- Electrical values are expected performance based on cable testing and representative performance within a typical Belden system.
Product Overview
- Patent
- This product has one or more applicable patents. More information on patents can be found at
- Suitable Applications
- Horizontal and building backbone cable; Support current and future Cat. 6a and 6 applications such as; 10GBase-T (10 Gigabit Ethernet), 1000Base-T (Gigabit Ethernet), 100 Base-T, 10 Base-T, FDDI and ATM
Specifications
- Color
- Blue
- EAN
- 8719605159397
- Length
- 500 m
- Put-Up Type
- Reel
Standards
- ANSI Compliance
- ANSI/TIA 568.2-D (2018)
- CENELEC Compliance
- EN 50173-1
- CPR Euroclass
- B2ca-s1a,d1,a1
- Data Category
- Category 6A
- IEEE Compliance
- PoE: IEEE 802.3bt Type 1, Type 2, Type 3, Type 4
- ISO/IEC Compliance
- ISO/IEC 11801-1
Temperature Range
- Installation Temp Range
- 0°C To +50°C
- Operating Temp Range
- -30°C To +60°C
