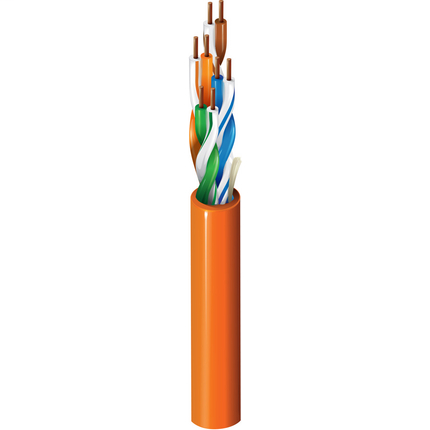

Belden 1868E.00B100
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Cat. 5e (100MHz), 4-Pair, F/UTP Foil shielded, Work Area Patch Cable, 26 AWG stranded (7x34) bare copper conductors, Polyethylene insulation, Beldfoil® shield, AWG 26 stranded (7x34) tinned copper drainwire, PVC jacket, RJ-45 compatible1868E.00B100 - Cat 5e Patch Cable, F/UTP, PVC, 4 Pair, AWG 26, Indoor
Belden 1868E.00B100 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Applicable Environmental and Other Programs
- Environmental Space
- Indoor
- EU RoHS Compliance Date (yyyy-mm-dd)
- 2003-01-01
Construction and Dimensions
- Min Elongation at Breakof Conductors
- 10 %
- Min Elongation at Breakof Insulation
- 100 %
- Min Elongation at Breakof Jacket
- 100 %
- Min Tensile Strength of Jacket
- 9 MPa
Electrical Characteristics
- Coupling Attenuation Class
- Type II
- General Electrical Parameters Notes
- Reference standard: ISO/IEC 61156 - 5 ed. 2.0 (2009)
- High Freq Table Note
- Limits below 4 MHz are for information only. Reference standard: ISO/IEC 61156-5 ed. 2.0 (2009)
- Segregation class according EN50174-2
- a
Flammability, LS0H, Toxicity Testing
- Burning Load
- 395 kJ/m
- ISO/IEC Flammability
- IEC 60332-1
History
- Update and Revision
- Revision Number: 0.222 Revision Date: 09-17-2019
Mechanical Characteristics
- Bulk Cable Weight
- 31 kg/km
- Max Recommended Pulling Tension
- 45 N
- Min Bend Radius During Installation
- 42 mm
- Min Bend Radius During Operation
- 21 mm
Part Number
- Patent
- https://www.belden.com/resources/patents
Physical Characteristics (Overall)
- Bonded-Pair
- No
- Conductor Count
- 8
- Outer Shield Table Note
- Aluminum facing inside in contact with drain wire
- Total Number of Pairs
- 4
Product Overview
- Suitable Applications
- Work area cable; Support current and future Category 5e applications, such as: 1000Base - T (Gigabit Ethernet), 100 Base - T, 10 Base - T, FDDI, ATM
Specifications
- Color
- Gray
- Length
- 100 m
Standards
- ANSI Compliance
- ANSI/TIA 568.2-D (2018)
- CENELEC Compliance
- EN 50173-1 Ed. 3:2011
- Data Category
- Category 5e
- IEEE Specification
- PoE: IEEE 802.3bt Type 1, Type 2, Type 3
- ISO/IEC Compliance
- ISO/IEC 11801 Ed. 2.2:2002/A2:2010/C1:2011
Temperature Range
- Installation Temp Range
- 0°C To +50°C
- Operating Temp Range
- -30°C To +60°C
