Description

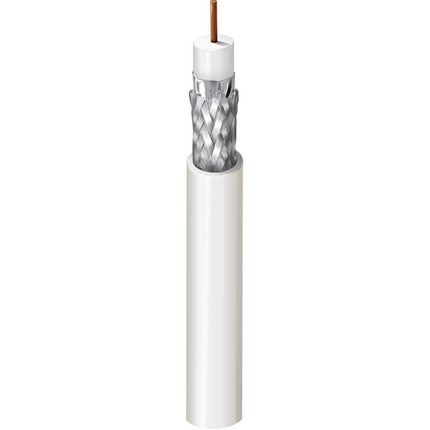

75 Ohm SDI Coax, Mini RG-59, 22 AWG Solid Bare Copper Conductor, PE Insulation, Foil + 90% Tinned Copper Braid Shield, LSZH Jacket, Dca. IEC 60332-1-2.1855ENH.10100 - 75 Ohm SDI Coax, Mini RG-59, 22 AWG Solid BC, Foil + 90% TC Braid, LSZH Jkt
Belden 1855ENH.10100 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Applicable Environmental and Other Programs
- Environmental Space
- Indoor/Outdoor - Euroclass Dca
Construction and Dimensions
- Min Elongation at Breakof Jacket
- 125 %
- Min Tensile Strength of Jacket
- 9 MPa
Flammability, LS0H, Toxicity Testing
- IEC 60754-1 (EN50267-1)- Halogen Amount
- Zero
- IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity
- 2.5 µS/mm
- IEC 60754-2 - Halogen Acid Gas Amount - Min. pH
- 4.3
- IEC 61034-2 (EN 61034-2) (VDE 0482-1034) - Smoke Density Min. Transmittance
- 60%
- IEC Flammability
- IEC 60332-1-2 and IEC 60332-3-24
- LOI of Jacket
- Min. 35 %
- Other Flammability
- CEI 20-35/1
History
- Update and Revision
- Revision Number: 0.210 Revision Date: 09-08-2021
Mechanical Characteristics
- Max. Pull Tension
- 160 N
- Min Bend Radius (W/o Pulling Strength)
- 45 mm
Product Overview
- Suitable Applications
- Digital Video, 6 Gb/s UHDTV, HD-SDI 1080p; Cable is UV-resistant and suitable for indoor and outdoor use
Specifications
- Color
- Green
- EAN
- 8719605004383
- Length
- 100 m
- Put-Up Type
- Reel
Standards
- CENELEC Compliance
- EN 50117-1 and EN 50290-2-20
- CPR Euroclass
- Dca-s1,d1,a1
- RG Type
- Mini 59
Temperature Range
- Installation Temp Range
- -5°C To +50°C
- Operating Temp Range
- -30°C To +70°C
- Storage Temp Range
- -30°C To +70°C
