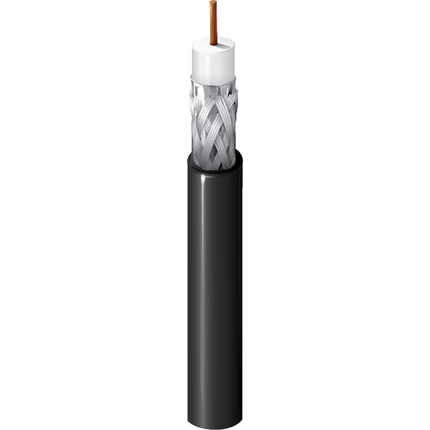

Belden 1855A 0071000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Belden 1855A 0071000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- AWG Size
- 23
- Color
- Violet
- Conductor Configuration
- 1 Coax/Triax
- Conductor Count
- 1
- Conductor Material
- Bare Copper
- Conductor Material and Stranding
- Bare Copper - Solid
- Country of Origin
- United States
- Environmental Space
- Indoor/Outdoor
- Insulation Material
- Polyolefin (PO, PE, PP)
- Jacket
- PVC
- Length
- 1000 ft
- Material@Insulation01
- PE - Polyethylene (Foam)
- Material@OuterShield1 2
- Tinned Copper (TC)
- Put-Up Type
- Reel
- Shielding
- Foil + Braid(s)
- Stranding@Conductor1
- Solid
- UL Temp Rating
- 75°C
- UL voltage rating
- 300 V RMS
Standard & Compliance
- CEC/C(UL) Compliance
- CMG
- China RoHS 2
- Yes
- CPR Euroclass
- Eca
- CPR UKCA Class
- Eca
- CSA Flammability
- FT4
- Environmental Product Declaration (EPD)
- No
- EU CE Mark
- Yes
- EU Directive 2011/65/EU (ROHS II)
- Yes
- EU Directive 2012/19/EU (WEEE)
- Yes
- EU Directive 2015/863/EU
- Yes
- EU RoHS Compliance Date (yyyy-mm-dd)
- 2004-01-01
- MII Order #39 (China RoHS)
- Yes
- NEC/(UL) Compliance
- CMR
- REACH
- Yes
- Suitability - Aerial
- Yes - Black only, when supported by messenger wire
- Suitability - Burial
- No
- Suitability - Indoor
- Yes
- Suitability - Outdoor
- Yes - Black only
- UKCA Mark
- Yes
- UL Flammability
- UL1666 Vertical Shaft
- UV Resistance
- Yes
