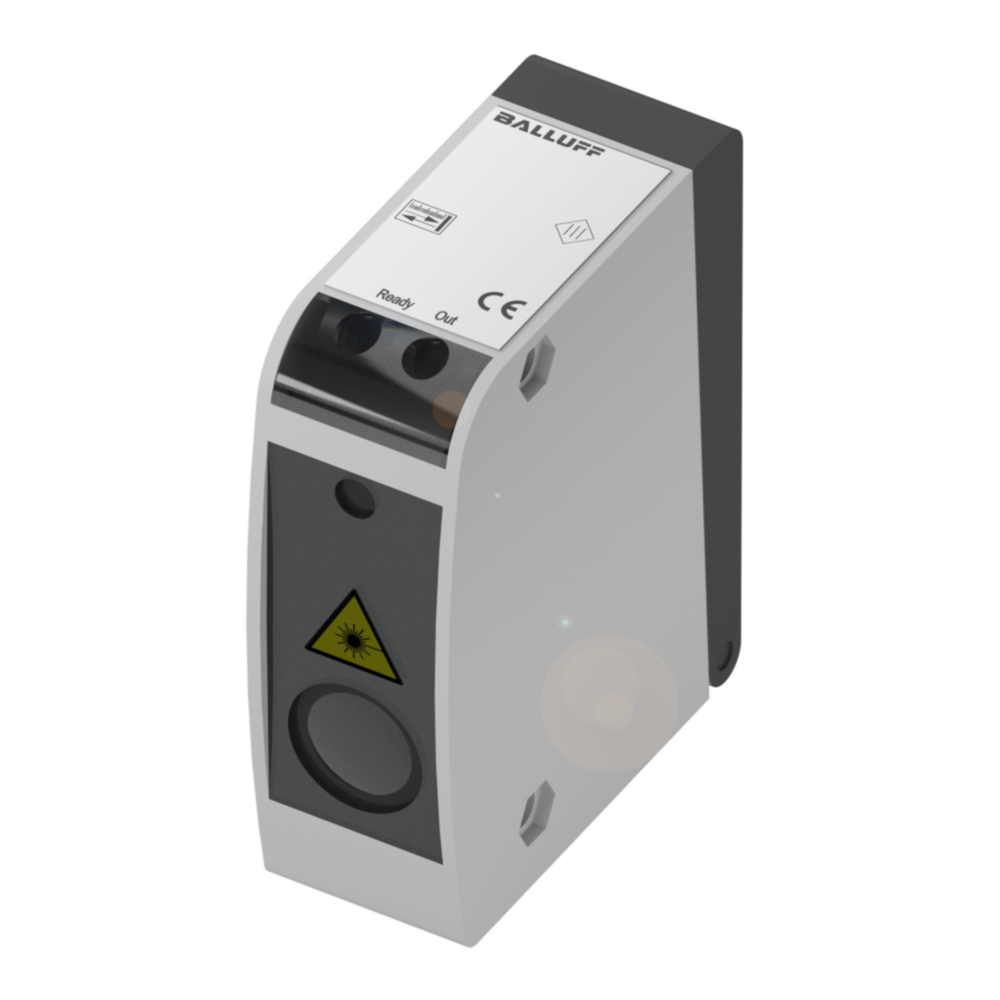

Balluff BOD 66M-LA12-S92 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Accuracy
- ±1.5 % FS
- Approval/Conformity
- CE, EAC, WEEE
- Beam characteristic
- Divergent
- Connection
- Connector, M12x1-Male, 5-pin
- Dimension
- 30 x 100.5 x 73.2 mm
- Housing material
- Zinc, Die casting
- Interface
- Analog, voltage 1…10 Vlinear rising/fallingPNP/NPN NO/NC
- Light spot size
- Ø 1 mm at 800 mm
- Light type
- Laser Red light
- Operating voltage Ub
- 18-30 VDC
- Principle of operation
- Photoelectric distance sensor BOD
- Principle of optical operation
- Triangulation
- Range
- 150-800 mm
- Repeat accuracy
- 0.5 % FS
- Resolution
- 100-800 µm
- Series
- 66M
