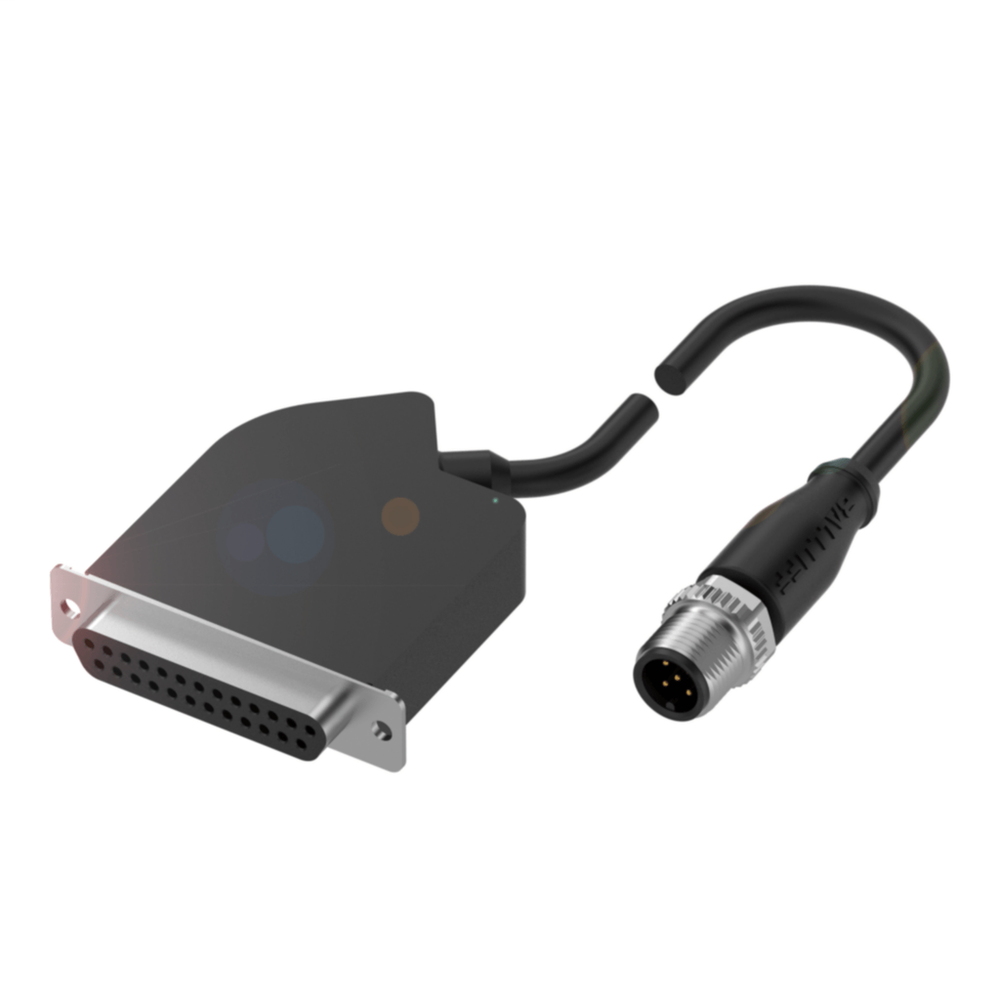

Balluff BNI IOL-752-V08-K007
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Balluff BNI IOL-752-V08-K007 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Ambient temperature
- -5-55 °C
- Application
- Festo with D-Sub female, 25-pin, GND on Pin 25, Bosch Rexroth LS04, Bürkert Typ 8640
- Cable length L
- 0.6 m
- Connection (COM 1)
- M12x1-Male, 5-pin, A-coded
- Current sum UA, actuator
- 1.2 A
- Dimension
- 53 x 61 x 12.5 mm
- Function
- 5-pin connection, Power Aux on Pin 2, also 0V on Pin 5
- Housing material
- PA
- Interface
- IO-Link 1.1
- IP rating
- IP40 plugged in
- Operating voltage Ub
- 18-30.2 VDC
- Output current max. UA, actuator
- 400 mA
- Outputs, number
- 24
- Process data cycle min.
- 3.5 ms
- Process data OUT
- 4 bytes
- Transfer rate
- COM2 (38.4 kBaud)
- Version
- Power Aux valve terminal connector
