Description

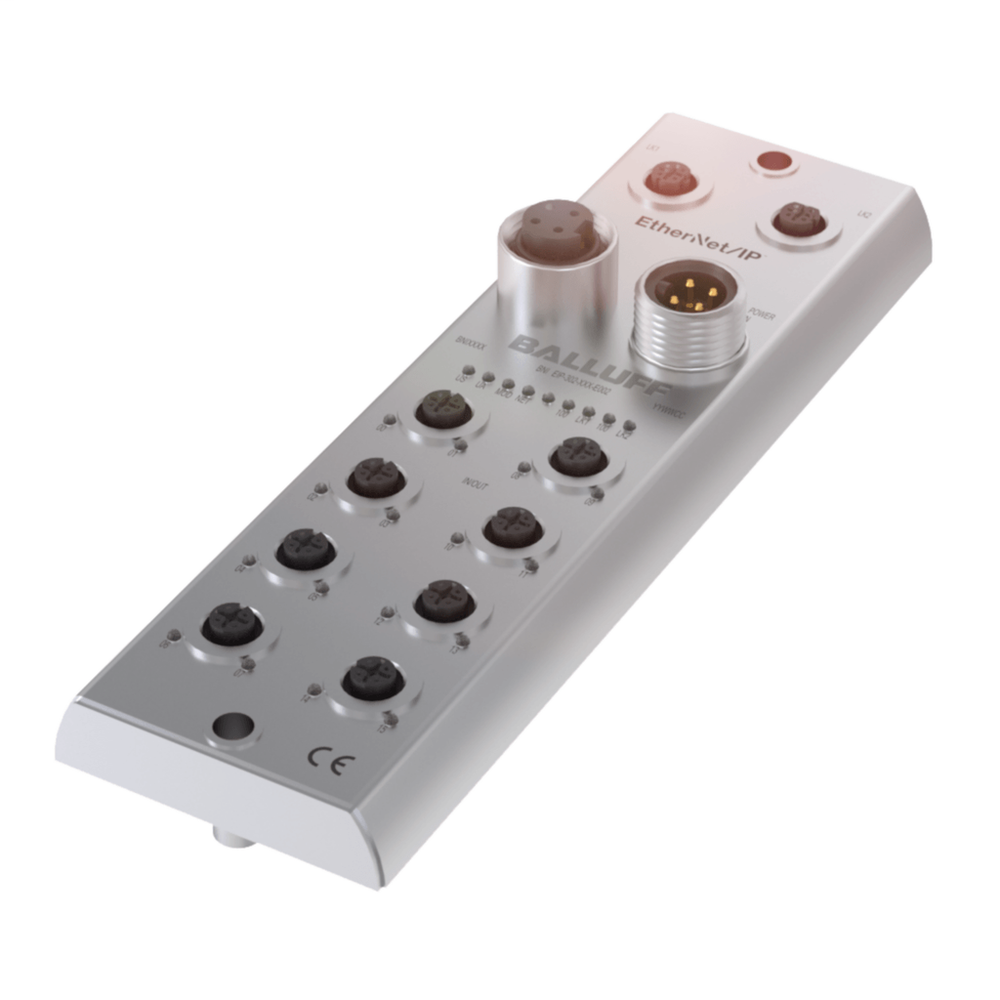

High efficiency is only feasible with an optimized network. We offer a comprehensive Ethernet/IP line of products for your high-efficiency system. Ethernet/IP is a worldwide recognized standard for network technology. and has replaced DeviceNet in many areas. The technology based on Ethernet is significantly faster and enables the integration of drive technology.Network blocks for Ethernet/IP BNI EIP-302-005-E002
Balluff BNI EIP-302-005-E002 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Ambient temperature
- -40-70 °C
- Configurable inputs/outputs
- yes
- Connection (COM 1)
- M12x1-Female, 4-pin, D-coded
- Connection (COM 2)
- M12x1-Female, 4-pin, D-coded
- Connection ports
- 8x M12x1-Female, 5-pin, A-coded
- Connection (supply voltage IN)
- 7/8"-Male, 4-pin
- Connection (supply voltage OUT)
- 7/8"-Female, 4-pin
- Current sum UA, actuator
- 9.0 A
- Digital inputs
- 16x PNP, Type 3
- Digital outputs
- 16x PNP
- Dimension
- 70 x 44.1 x 228 mm
- Housing material
- Stainless steel (1.4571)
- Interface
- EtherNet/IP
- IP rating
- IP69
- Operating voltage Ub
- 18-30.2 VDC
- Output current max.
- 2 A
- Principle of operation
- Active splitter
