Description

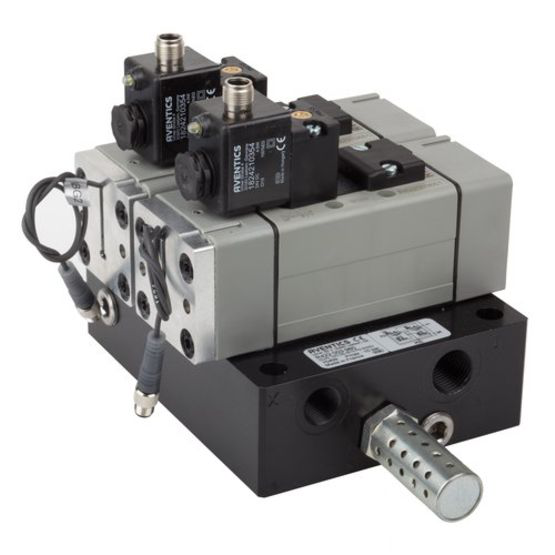

DUAL VALVE-IS12-PD-024DC-M12-E-NRV3/2-directional valve, Dual valve, IS12-PD series, size 1 R422003189 - R422003189
AVENTICS R422003189 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Activation
- Electrically
- Actuating control
- Single Solenoid
- Actuation
- Single Solenoid
- Blocking principle
- Double base plate principle
- Compressed air connection, exhaust
- G 1/4
- Compressed air connection input
- G 1/4
- Compressed air connection output
- G 1/4
- Connection type
- Plate connection
- Control pressure max.
- 10 bar
- Control pressure min.
- 3.5 bar
- DC operating voltage
- 24 V
- Electrical Connection
- M12
- Electrical connection size
- M12
- Electrical connection type
- Plug
- Manual override
- without detent
- Manual Override
- without detent
- Max. ambient temperature
- 50 Deg C
- Maximum Working Pressure
- 10 bar
- Min. ambient temperature
- 0 Deg C
- Pilot
- External
- Pilot valve width
- 30 mm
- Power consumption DC
- 4.5 W
- Return
- With spring return
- Sealing principle
- Soft Seal
- Standards
- ISO 5599-1, ISO 13849-1
- Standards and Regulations
- ISO 5599-1, ISO 13849-1
- Switching principle
- 2 x 5/2
- Valve Function
- 2 x 5/2
- Valve Pilot
- External
- Valve type
- Spool valve
- Voltage tolerance DC
- -10% / +10%
- Working pressure max
- 10 bar
- Working pressure min.
- 1 bar
