Description

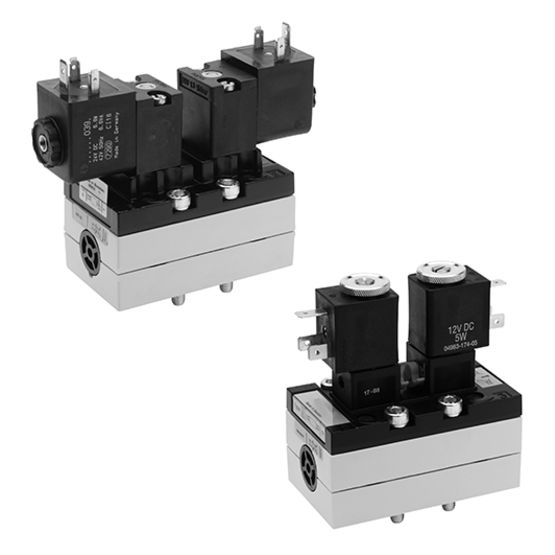

V581-5/2SR-230AC-I2-1CNO-HUX-AA-X-C-T05/2-directional valve, Series 581, size 2 5812170440 - 5812170440
AVENTICS 5812170440 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Activation
- Electrically
- Actuating control
- Single Solenoid
- Blocking principle
- Single base plate principle
- Compressed air connection, exhaust
- Base plate ISO 5599-1
- Compressed air connection input
- Base plate ISO 5599-1
- Compressed air connection output
- Base plate ISO 5599-1
- Compressed air connection pilot exhaust
- M5
- Connection type
- Plate connection
- Electrical Connection
- EN 175301-803, form A
- Electrical connection size
- EN 175301-803, form A
- Electrical connection type
- Plug
- Flow (L/M)
- 2700 l/min
- Holding power AC 50 Hz
- 10.8 VA
- Manual override
- without detent
- Manual Override
- without detent
- Maximum Working Pressure
- 16 bar
- Nominal flow Qn
- 2700 l/min
- Operational voltage AC at 50 Hz
- 230 V
- Pilot
- Internal
- Pilot valve width
- 30x22 mm CNOMO
- Return
- With spring return
- Sealing principle
- Soft Seal
- Standards
- ISO 5599-1
- Standards and Regulations
- ISO 5599-1
- Switching principle
- 5/2
- Switch-on power AC 50 Hz
- 15.2 VA
- Valve Function
- 5/2
- Valve Pilot
- Internal
- Valve type
- Spool valve
- Voltage tolerance AC 50 Hz
- -10% / +10%
- Working pressure max
- 16 bar
- Working pressure min.
- 3 bar
