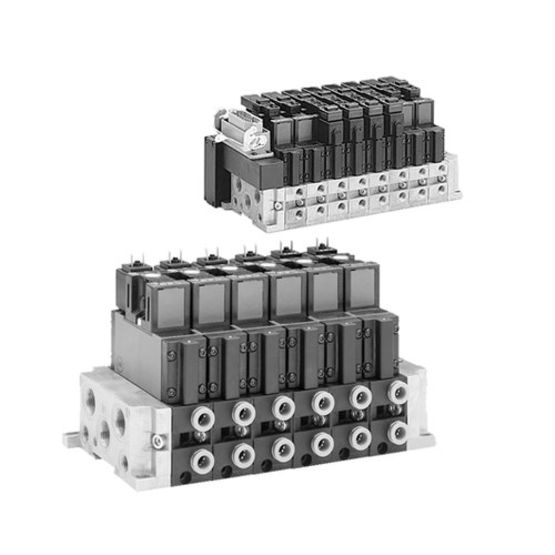

AVENTICS 5763810220
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
CD01 - 5/3EC - 024DC5/3-directional valve, Series CD01-PA 5763810220 - 5763810220
AVENTICS 5763810220 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Activation
- Electrically
- Certificates
- Free of substances that impair surface wetting in the coating process
- Compressed air connection, exhaust
- base plate DIN ISO 15407-1
- Compressed air connection input
- base plate DIN ISO 15407-1
- Compressed air connection output
- base plate DIN ISO 15407-1
- Compressed air connection pilot exhaust
- base plate DIN ISO 15407-1
- Compressed air connection pilot input
- base plate DIN ISO 15407-1
- Connection type
- Plate connection
- Control pressure max.
- 10 bar
- Control pressure min.
- 3 bar
- DC operating voltage
- 24 V
- Electrical Connection
- EN 175301-803, form C
- Electrical connection size
- EN 175301-803, form C
- Electrical connection type
- Plug
- Frame size
- 26 mm
- Manual override
- with detent
- Manual Override
- with detent
- Maximum Working Pressure
- 10 bar
- Pilot
- Internal
- Pilot valve width
- 26 mm
- Power consumption DC
- 1.6 W
- Sealing principle
- Soft Seal
- Standards
- ISO 15407-1
- Standards and Regulations
- ISO 15407-1
- Switching principle
- 5/3
- Valve Function
- Exhausted Center
- Valve Pilot
- Internal
- Valve type
- Spool valve, positive overlapping
- Version
- Exhausted Center
- Voltage tolerance DC
- -10% / +10%
- Working pressure max
- 10 bar
- Working pressure min.
- 3 bar
