AVENTICS 5728405420
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

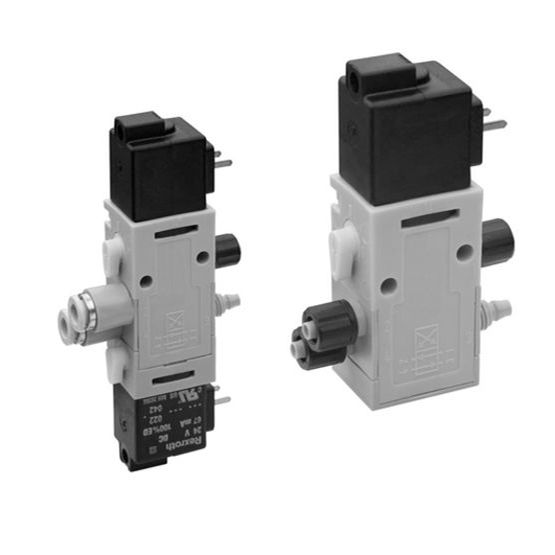

V840-4/2OC-DI04-024AC-034/2-directional valve, Series 840 5728405420 - 5728405420
AVENTICS 5728405420 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Activation
- Electrically
- Actuating control
- Single Solenoid
- Compressed air connection output
- Ø 6x1
- Diameter 6x1
- Connection type
- Pipe connection
- Control pressure max.
- 10 bar
- Control pressure min.
- 1.5 bar
- Electrical Connection
- EN 175301-803, form C
- Electrical connection size
- EN 175301-803, form C
- Electrical connection type
- Plug
- Electrical Connection Type
- Plug
- Flow (L/M)
- 200 l/min
- Manual override
- with detent
- Manual Override
- with detent
- Max. ambient temperature
- 50 Deg C
- Maximum Working Pressure
- 10 bar
- Min. ambient temperature
- -15 Deg C
- Min. medium temperature
- -15 Deg C
- Nominal flow Qn
- 200 l/min
- Operational voltage AC at 50 Hz
- 24 V
- Operational voltage AC at 60 Hz
- 24 V
- Pilot
- Internal
- Pilot valve width
- 22.5 mm
- Return
- with air spring return
- Return type
- with air spring return
- Sealing principle
- Soft Seal
- Seat / Seal Type
- Soft Seal
- Switching principle
- 4/2
- Valve Function
- 4/2
- Valve Pilot
- Internal
- Valve type
- Diaphragm poppet valve
- Voltage tolerance AC 50 Hz
- -10% / +15%
- Voltage tolerance AC 60 Hz
- -10% / +15%
- Working pressure max
- 10 bar
- Working pressure min.
- 1.5 bar
