Description

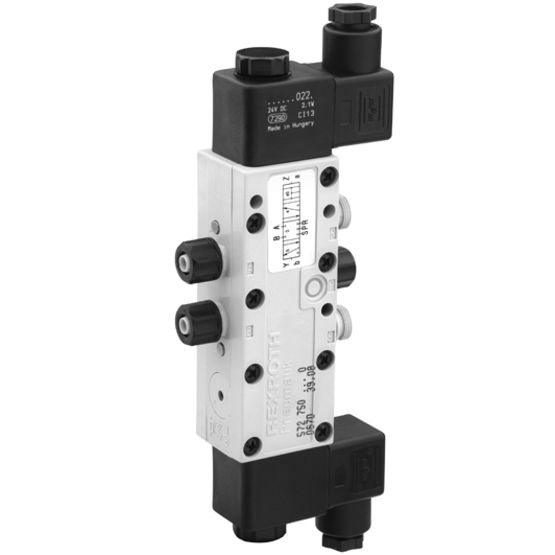

V740-5/4CC-DA10-024DC-07-MODI5/4-directional valve, Series 740 5727560920 - 5727560920
AVENTICS 5727560920 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Activation
- Electrically
- Blocking principle
- Plate principle, Single base plate principle
- Can be assembled into blocks
- Can be assembled into blocks
- Compressed air connection output
- Diameter 10x1
- Ø 10x1
- Connection type
- Pipe connection
- DC operating voltage
- 24 V
- Electrical Connection
- EN 175301-803, form A
- Electrical connection size
- EN 175301-803, form A
- Electrical connection type
- Plug
- Electrical Connection Type
- Plug
- Flow (L/M)
- 950 l/min
- Manual override
- without detent
- Manual Override
- without detent
- Max. ambient temperature
- 50 Deg C
- Maximum Working Pressure
- 10 bar
- Max. medium temperature
- 50 Deg C
- Max. particle size
- 50 µm
- Medium
- Compressed air
- Min. ambient temperature
- -15 Deg C
- Min. medium temperature
- -15 Deg C
- Nominal flow Qn
- 950 l/min
- Oil content of compressed air min.
- 0 mg/m³
- Pilot
- Internal
- Sealing principle
- Soft Seal
- Seat / Seal Type
- Soft Seal
- Switching principle
- 5/4
- Valve Function
- 5/4
- Valve Pilot
- Internal
- Valve plug connector
- Without valve plug connector
- Valve type
- Diaphragm poppet valve
- Voltage tolerance DC
- -10% / +10%
- Working pressure max
- 10 bar
- Working pressure min.
- 3 bar
