AVENTICS 5727455302
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

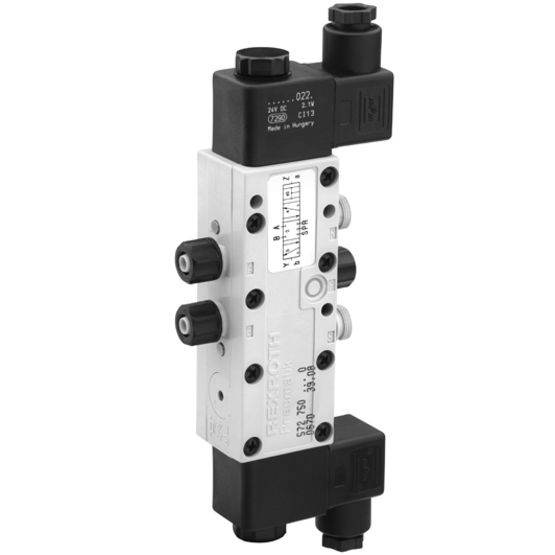

V740-5/2AS-00000-075/2-directional valve, Series 740 5727455302 - 5727455302
AVENTICS 5727455302 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Accessory Type
- Directional valves
- Activation
- Electrically
- Actuating control
- Single Solenoid
- ATEX
- ATEX optional
- basic valve with electrical connector
- Basic valve without coil
- Blocking principle
- Plate principle, Single base plate principle
- Can be assembled into blocks
- Can be assembled into blocks
- Compressed air connection output
- Ø 10x1
- Diameter 10x1
- Connection type
- Pipe connection
- Electrical Connection
- EN 175301-803, form A
- Electrical connection size
- EN 175301-803, form A
- Electrical connection type
- Plug
- Electrical Connection Type
- Plug
- Flow (L/M)
- 950 l/min
- Manual override
- with detent, without detent
- Manual Override
- without detent|with detent
- Max. ambient temperature
- 50 Deg C
- Maximum Working Pressure
- 10 bar
- Max. medium temperature
- 50 Deg C
- Min. ambient temperature
- -25 Deg C
- Min. medium temperature
- -25 Deg C
- Nominal flow Qn
- 950 l/min
- Pilot
- Internal
- Return
- with air spring return
- Return type
- with air spring return
- Sealing principle
- Soft Seal
- Seat / Seal Type
- Soft Seal
- Switching principle
- 5/2
- Temperature resistance
- -25 Deg C cold-resistant
- Throttle
- with throttle
- Valve Function
- 5/2
- Valve Pilot
- Internal
- Valve type
- Diaphragm poppet valve
- Working pressure max
- 10 bar
- Working pressure min.
- 1.5 bar
