AVENTICS 5236996402
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

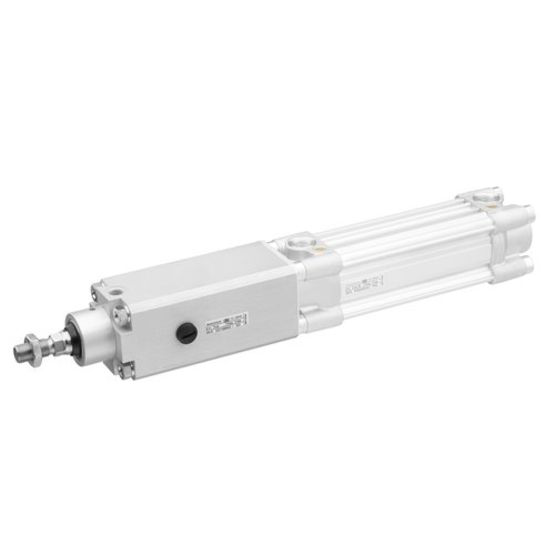

LU6-125-AL-ANLocking unit, Series LU6 5236996402 - 5236996402
AVENTICS 5236996402 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Accessory Type
- Locking Elements
- Bore Size
- 125 mm
- Braking energy per braking cycle related to B10d, EB10d
- 47 J
- Compressed air connection
- G 1/4
- Flow (L/M)
- 1200 l/min
- Function
- Holding and braking: non-adjustable spring, Release: compressed air
- Static holding, Dynamic braking
- Max. ambient temperature
- 80 Deg C
- Max. braking energy per braking cycle ELU6
- 140 J
- Max. braking energy per hour PLU6
- 21000 J
- Max. medium temperature
- 80 Deg C
- Max. moving mass mmax, external
- 1223 kg
- Max. particle size
- 5 µm
- Max. piston speed v max.
- 1 m/s
- Max. torsional moment of piston rod
- 15 Nm
- Max. total braking energy Etotal
- 93 MJ
- Medium
- Compressed air
- Min. ambient temperature
- -25 Deg C
- Min. medium temperature
- -25 Deg C
- Oil content of compressed air min.
- 0 mg/m³
- Piston diameter
- 125 mm
- Piston Ø
- 125 mm
- Piston rod extension
- 220 mm
- Release pressure max.
- 10 bar
- Release pressure min.
- 4 bar
- Required flow rate Qn
- 1200 l/min
- Scraper
- Nitrile butadiene rubber
- Sealing Material
- Nitrile butadiene rubber
- suitable piston rod Ø
- 32 mm
- Type
- Clamping jaw lock
