AVENTICS 2719060300
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

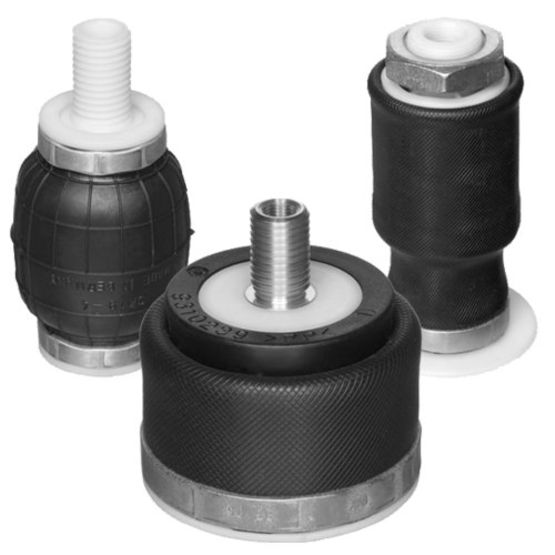

BRB-SB-060-026-0CR-PA-G018Rolling bellow, series BRB 2719060300 - 2719060300
AVENTICS 2719060300 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Bellow Cylinder type
- Flexible rolling bellow
- Compressed air connection
- G 1/8
- Cover diameter
- 34 mm
- Cylinder Function
- Single-acting, retracted without pressure
- Force max.
- 1070 N
- Force min.
- 620 N
- Functional principle
- Single-acting, retracted without pressure
- Material bellow
- Chloroprene rubber
- Material clamping ring
- Aluminum
- Material front cover
- Polyamide fiber-glass reinforced
- Max. ambient temperature
- 90 Deg C
- Max. effective stroke
- 26 mm
- Medium
- Compressed air
- Min. ambient temperature
- -30 Deg C
- Min. radial installation space
- 78 mm
- Permissible angle of tilt max.
- 15 °
- Pressure for determining forces
- 6 bar
- Reduced service life at a temperature greater than
- 70 Deg C
- Stroke Length
- 26 mm
- Type
- Flexible rolling bellow
- Weight
- 0.07 kg
- Working pressure max
- 8 bar
- Working pressure min.
- 0 bar
