Description

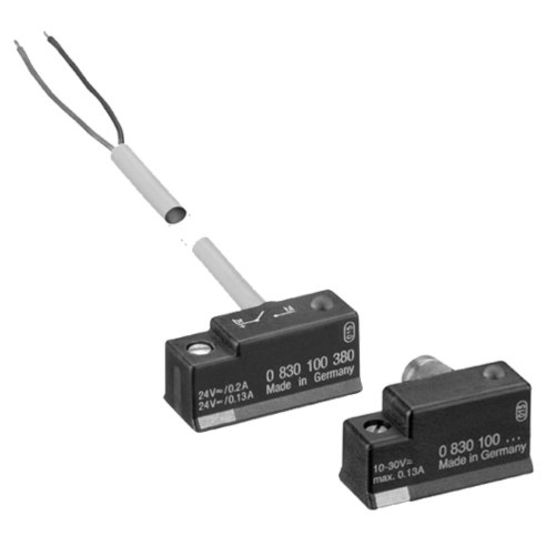

ST9-R3-M008-030 27 OHMSensor, Series ST9 0830100486 - 0830100486
AVENTICS 0830100486 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Accessory Type
- Sensors
- AC switching current, max.
- 0.2 A
- Cylinder series
- KHZ
- DC switching current, max.
- 0.13 A
- Direct mounting for series
- KHZ
- Electrical Connection
- M8
- Electrical connection 2, number of poles
- 3-pin
- Electrical connection 2, type
- M8, Plug
- Electrical Connection Type
- Plug
- Housing material
- Polyamide
- LED color
- Yellow
- LED status display
- Yellow
- Max. ambient temperature
- 80 Deg C
- Min. ambient temperature
- -20 Deg C
- Nominal current, actuated state
- < 7 mA
- Number of Wires
- 3-pin
- Operating voltage AC, min.
- 10 V AC
- Operating voltage DC, max.
- 30 V DC
- Operating voltage DC, min.
- 10 V DC
- Operational voltage AC, max.
- 30 V AC
- Output Signal
- Reed
- Protection
- Protected against polarity reversal
- Protection class
- IP67, IP65
- IP67
- Protective resistor for reed
- 27 Ω
- Shock resistance
- 100 g / 11 ms
- Short circuit resistance
- Protected against polarity reversal
- Slot width
- 9 mm groove
- 9mm groove
- Supply voltage AC max.
- 30 V AC
- Supply voltage DC max.
- 30 V DC
- Switching capacity
- 3 W / 5 VA
- Switching point precision
- ±0,1 mT
- Type of contact
- Reed
- Vibration resistance
- 60 g (50 ... 2000 Hz)
- Voltage drop U at Imax
- I*Rs
