AVENTICS 0830100368
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

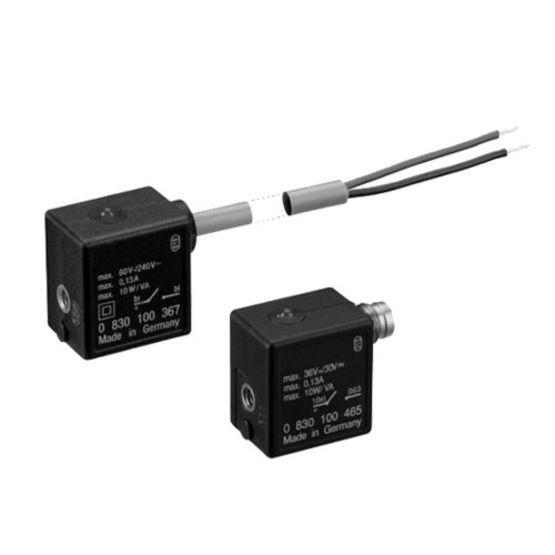

SN2-R2-K03V-240Sensor, Series SN2 0830100368 - 0830100368
AVENTICS 0830100368 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Accessory Type
- Sensors
- AC switching current, max.
- 0.5 A
- Cable
- with cable
- Cable Length
- 3 m
- Cable length L
- 3 m
- Contacts
- Reed
- Cylinder series
- TRR
- DC switching current, max.
- 0.3 A
- Electrical connection 2, number of poles
- 2-pin
- Electrical connection 2, type
- without wire end ferrule, tin-plated
- Electrical Connection Type
- without wire end ferrule, tin-plated
- Housing material
- Polyamide
- Indirect mounting for series
- TRB, PRA, ITS, MNI, CSL-RD, ICM, RPC, TRR, FLT, CVI
- LED color
- Yellow
- LED status display
- Yellow
- Max. ambient temperature
- 80 Deg C
- Min. ambient temperature
- -20 Deg C
- Number of Wires
- 2-pin
- Operating voltage AC, min.
- 12 V AC
- Operating voltage DC, max.
- 60 V DC
- Operating voltage DC, min.
- 12 V DC
- Operational voltage AC, max.
- 240 V AC
- Output Signal
- Reed
- Protection class
- IP67
- Protective resistor for reed
- 1,3 Ω
- Shock resistance
- 50 g / 11 ms
- Short circuit resistance
- Protected against polarity reversal
- Supply voltage AC max.
- 240 V AC
- Supply voltage DC max.
- 60 V DC
- Switching capacity
- 10 W / 10 VA
- Switching point precision
- ±0,1 mT
- Type of contact
- Reed
- Version
- Heat resistant
- Vibration resistance
- 30 g (50 - 1000 Hz)
- Voltage drop U at Imax
- 2,1 V + I*Rs
