Description

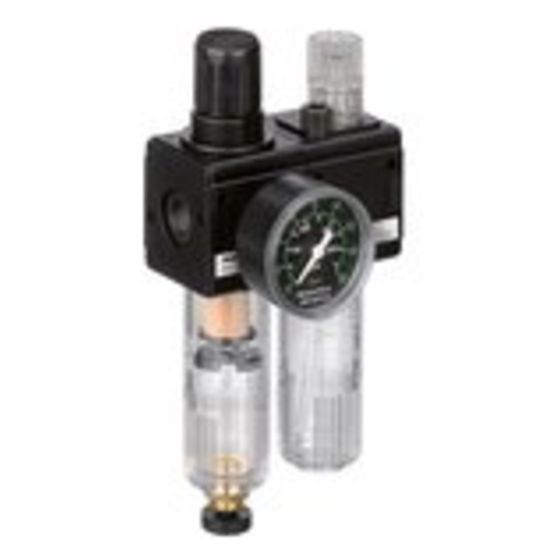

NL4-FRE-G012-GAU-100-PBS-AO-05,00Filter pressure regulator, Series NL4-FRE 0821300354 - 0821300354
AVENTICS 0821300354 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Compressed air connection
- G 1/2
- Condensate drain
- fully automatic, open without pressure
- Filter element
- exchangeable
- Filter porosity
- 5 µm
- Filter reservoir volume
- 50 cm³
- Flow (L/M)
- 6900 l/min
- Lockable
- not lockable
- Lock type
- not lockable
- Maintenance Unit Parts
- Filter pressure regulator
- Max. achievable compressed air class acc. to ISO 8573-1:2010
- 6 : 7 : -
- Max. ambient temperature
- 60 Deg C
- Maximum Ambient Temperature
- 60 °C
- Maximum Working Pressure
- 16 bar
- Medium
- Compressed air, Neutral gases
- Min. ambient temperature
- -10 Deg C
- Minimum Ambient Temperature
- -10 °C
- Mounting orientation
- vertical
- Nominal flow Qn
- 6900 l/min
- Parts
- Filter pressure regulator
- Port
- G 1/2
- Pressure gauge
- with pressure gauge
- Pressure supply
- single
- Regulation Range
- 10 bar
- Regulation range max.
- 10 bar
- Regulation range min.
- 0.5 bar
- Regulation Range min.
- 0.5 bar
- Regulator function
- with relieving air exhaust
- Regulator type
- Diaphragm-type pressure regulator
- Reservoir
- reservoir, polycarbonate, with metal protective guard
- Type
- 1-part
- Can be assembled into blocks
- Version Manometer
- with pressure gauge
- Version Reservoir
- reservoir, polycarbonate, with metal protective guard
- Weight
- 1.35 kg
- Working pressure max
- 16 bar
- Working pressure min.
- 1.5 bar
