Description

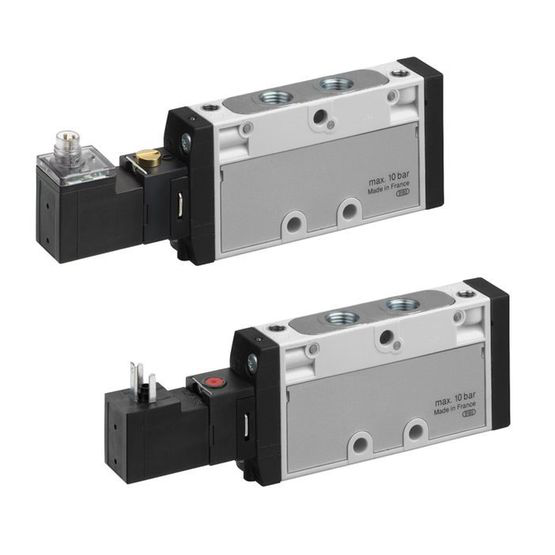

TC08-5/2XX-AS-E-VTS5/2-directional valve, Series TC08 0820260702 - 0820260702
AVENTICS 0820260702 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Accessory Type
- Directional valves
- Activation
- Pneumatically
- Blocking principle
- Plate principle
- Compressed air connection, exhaust
- G 1/8
- Compressed air connection output
- G 1/8
- Compressed air connection pilot exhaust
- M5
- Connection type
- Plate connection, Pipe connection
- Control pressure max.
- 10 bar
- Control pressure min.
- 3 bar
- Flow conductance b
- 0.36
- Flow (L/M)
- 800 l/min
- Max. ambient temperature
- 50 Deg C
- Maximum Working Pressure
- 10 bar
- Max. medium temperature
- 50 Deg C
- Max. particle size
- 5 µm
- Medium
- Compressed air
- Min. ambient temperature
- -10 Deg C
- Min. medium temperature
- -10 Deg C
- Nominal flow Qn
- 800 l/min
- Oil content of compressed air max.
- 5 mg/m³
- Oil content of compressed air min.
- 0 mg/m³
- Pilot
- External
- Return type
- with spring/air spring return
- Sealing principle
- Soft Seal
- Seat / Seal Type
- Soft Seal
- Switching principle
- 5/2
- Valve Function
- 5/2
- Valve Pilot
- External
- Valve type
- Spool valve, positive overlapping
- Working pressure max
- 10 bar
- Working pressure min.
- 3 bar
