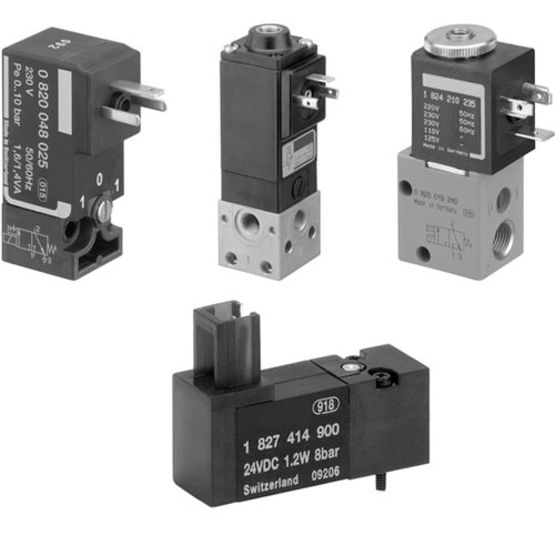

AVENTICS 0820048002
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
DO16-3/2NC-IS15-024DC-MOI3/2-directional valve, Series DO16 0820048002 - 0820048002
AVENTICS 0820048002 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Accessory Type
- Directional valves
- Activation
- Electrically
- Connection type
- Plate connection
- DC operating voltage
- 24 V
- Duty cycle
- 100 %
- Electrical Connection
- ISO 15217, form C
- Electrical connection size
- ISO 15217, form C
- Electrical connection type
- Plug
- Manual override
- without detent
- Manual Override
- without detent
- Max. ambient temperature
- 50 Deg C
- Maximum Working Pressure
- 10 bar
- Max. medium temperature
- 50 Deg C
- Max. particle size
- 5 µm
- Medium
- Compressed air
- Min. ambient temperature
- -10 Deg C
- Min. medium temperature
- -10 Deg C
- Nominal flow Qn 1 to 2
- 25 l/min
- Nominal flow Qn 2 to 3
- 36 l/min
- Oil content of compressed air max.
- 5 mg/m³
- Oil content of compressed air min.
- 0 mg/m³
- Power consumption DC
- 2 W
- Return
- With spring return
- Return type
- With spring return
- Sealing principle
- Soft Seal
- Seat / Seal Type
- Soft Seal
- Switching principle
- 3/2
- Valve Function
- 3/2
- Valve type
- Poppet valve
- Voltage tolerance DC
- -10% / +15%
- Working pressure max
- 10 bar
- Working pressure min.
- 0 bar
