AVENTICS 0820038602
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

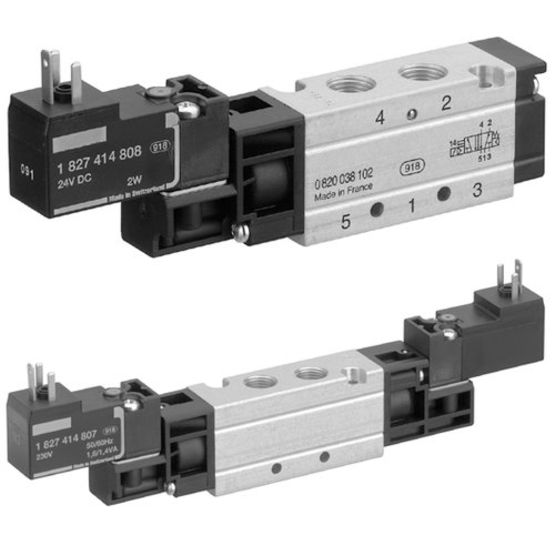

WV02-5/2DS-024DC5/2-directional valve, Series WV02 0820038602 - 0820038602
AVENTICS 0820038602 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Activation
- Electrically
- Compressed air connection output
- G 1/8
- Connection type
- Pipe connection
- Control pressure max.
- 10 bar
- Control pressure min.
- 1.5 bar
- DC operating voltage
- 24 V
- Electrical Connection
- ISO 15217, form C
- Electrical connection size
- ISO 15217, form C
- Electrical connection type
- Plug
- Electrical Connection Type
- Plug
- Flow (L/M)
- 500 l/min
- Manual override
- without detent
- Manual Override
- without detent
- Max. ambient temperature
- 50 Deg C
- Maximum Working Pressure
- 10 bar
- Max. medium temperature
- 60 Deg C
- Max. particle size
- 5 µm
- Medium
- Compressed air
- Min. ambient temperature
- 0 Deg C
- Min. medium temperature
- 0 Deg C
- Nominal flow Qn
- 500 l/min
- Pilot
- Internal
- Pilot valve width
- 15 mm
- Return
- with spring/air spring return
- Return type
- with spring/air spring return
- Sealing principle
- Soft Seal
- Seat / Seal Type
- Soft Seal
- Switching principle
- 5/2
- Valve Function
- 5/2
- Valve Pilot
- Internal
- Valve type
- Spool valve, positive overlapping
- Voltage tolerance DC
- -10% / +10%
- Working pressure max
- 10 bar
- Working pressure min.
- 1.5 bar
