AVENTICS 0820038157
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

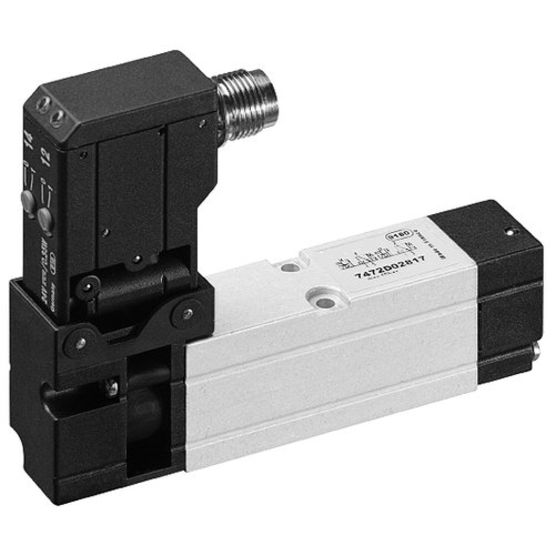

CD02-5/2AS-024DC5/2-directional valve, Series CD02-AL 0820038157 - 0820038157
AVENTICS 0820038157 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Activation
- Electrically
- Actuating control
- Single Solenoid
- Blocking principle
- Base plate principle, multiple
- Compressed air connection, exhaust
- VDMA 02 base plate
- Compressed air connection input
- VDMA 02 base plate
- Compressed air connection output
- VDMA 02 base plate
- Compressed air connection pilot exhaust
- VDMA 02 base plate
- Connection type
- Plate connection
- Control pressure min.
- 2 bar
- DC operating voltage
- 24 V
- Electrical Connection
- ISO 15217, form C
- Electrical connection size
- ISO 15217, form C
- Electrical connection type
- Plug
- Flow (L/M)
- 450 l/min
- Frame size
- 18 mm
- Manual override
- without detent
- Manual Override
- without detent
- Maximum Working Pressure
- 10 bar
- Nominal flow Qn
- 450 l/min
- Pilot
- External
- Pilot valve width
- 15 mm
- Power consumption DC
- 2 W
- Return
- with spring/air spring return
- Sealing principle
- Soft Seal
- Standards
- ISO 15407-1
- Standards and Regulations
- ISO 15407-1
- Switching principle
- 5/2
- Valve Function
- 5/2
- Valve Pilot
- External
- Valve type
- Spool valve, positive overlapping
- Voltage tolerance DC
- -10% / +10%
- Working pressure max
- 10 bar
- Working pressure min.
- -0.9 bar
