Description

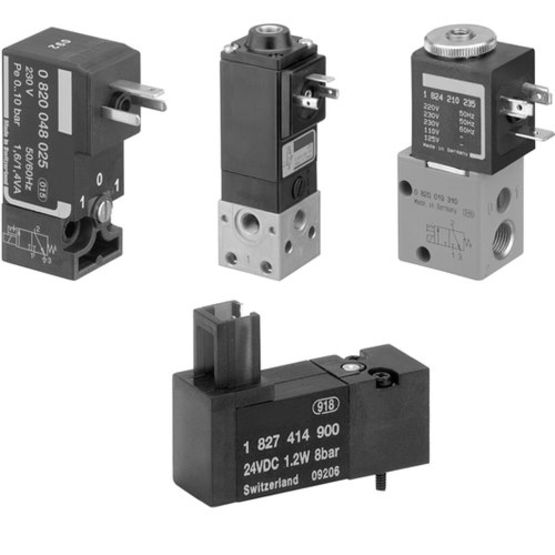

DO22-3/2NC-SPEZ-NO_COIL3/2-directional valve, Series DO22 0820019967 - 0820019967
AVENTICS 0820019967 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Activation
- Electrically
- ATEX
- suitable for ATEX
- basic valve with electrical connector
- Basic valve without coil
- Compatibility index
- 14
- Compressed air connection, exhaust
- M5
- Compressed air exhaust
- M5
- Connection type
- Plate valve with pipe connection
- Electrical Connection
- ISO 6952, form B
- Electrical connection size
- ISO 6952, form B
- Electrical connection type
- Plug
- Manual override
- without
- Manual Override
- without
- Max. ambient temperature
- 50 Deg C
- Maximum Working Pressure
- 10 bar
- Max. medium temperature
- 50 Deg C
- Max. particle size
- 5 µm
- Medium
- Compressed air
- Min. ambient temperature
- -10 Deg C
- Min. medium temperature
- -10 Deg C
- Nominal flow Qn 1 to 2
- 61 l/min
- Nominal flow Qn 2 to 3
- 74 l/min
- Oil content of compressed air max.
- 5 mg/m³
- Oil content of compressed air min.
- 0 mg/m³
- Return
- With spring return
- Return type
- With spring return
- Sealing principle
- Soft Seal
- Seat / Seal Type
- Soft Seal
- Switching principle
- 3/2
- Valve Function
- 3/2
- Valve type
- Poppet valve
- Working pressure max
- 10 bar
- Working pressure min.
- 0 bar
