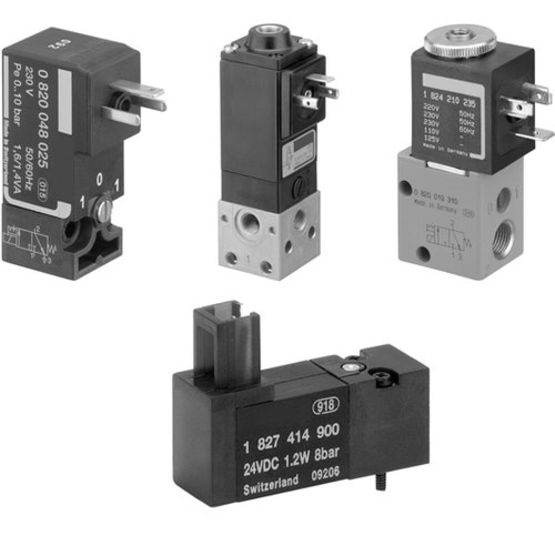

AVENTICS 0820019501
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
DO30-3/2NC-CNOM-024DC3/2-directional valve, Series DO30 0820019501 - 0820019501
AVENTICS 0820019501 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Accessory Type
- Directional valves
- Activation
- Electrically
- Compressed air connection, exhaust
- M5
- Compressed air connection input
- CNOMO
- Compressed air connection output
- CNOMO
- Compressed air exhaust
- M5
- Connection type
- Plate valve with pipe connection
- DC operating voltage
- 24 V
- Electrical Connection
- EN 175301-803, form A
- Electrical connection size
- EN 175301-803, form A
- Electrical connection type
- Plug
- Manual override
- with detent
- Manual Override
- with detent
- Max. ambient temperature
- 50 Deg C
- Maximum Working Pressure
- 10 bar
- Max. medium temperature
- 50 Deg C
- Max. particle size
- 5 µm
- Medium
- Compressed air
- Min. ambient temperature
- -10 Deg C
- Min. medium temperature
- -10 Deg C
- Oil content of compressed air max.
- 5 mg/m³
- Oil content of compressed air min.
- 0 mg/m³
- Pilot valve width
- 30 mm
- Return
- With spring return
- Return type
- With spring return
- Sealing principle
- Soft Seal
- Seat / Seal Type
- Soft Seal
- Standards
- CNOMO / NFE 49-003-1
- Switching principle
- 3/2
- Valve Function
- 3/2
- Valve type
- Poppet valve
- Working pressure max
- 10 bar
- Working pressure min.
- 0 bar
