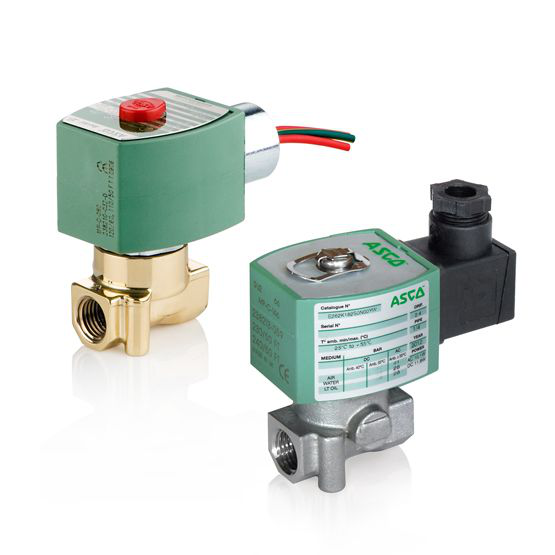

ASCO E262K208S1N01H1
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
SOL. VALVE, 2/2NC, GAZ/RP 1/4, D=5.6 BRASS BODY, NBR SEAL, W/ MANUAL OPERAT. 24V/DC - 11,6W - COIL MXXII - CLASS H WITH STANDARD DIN CONNECTOR ROTATABLEE262K208S1N01H1 - E262K208S1N01H1
ASCO E262K208S1N01H1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Actuation
- Solenoid - Direct Acting
- Body Material
- Brass
- Coil Class
- H
- Connector
- Included (EN175301-803; ISO 4400, industry standard form A)
- Flow (Cv) / Flow (Kv)
- 0.73 / 0.63
- Function
- 2/2 Normally Closed
- Maximum Ambient Temperature
- 55
- Maximum Operating Pressure (Air)
- 2
- Maximum Operating Pressure (Light Oil)
- 2
- Maximum Operating Pressure (Water)
- 2
- Media
- Air, Inert Gas|Light Oil|Water
- Light Oil; Air, Inert Gas; Water
- Minimum Ambient Temperature
- -25
- Minimum Operating Pressure (Air)
- 0
- Minimum Operating Pressure (Light Oil)
- 0
- Minimum Operating Pressure (Water)
- 0
- Min to Max Ambient Temperature
- -25 - 55 °C
- Min to Max Fluid Temperature
- -25 - 80 °C
- Min to Max Operating Pressure (Air)
- 0 - 2 bar
- Min to Max Operating Pressure (Light Oil)
- 0 - 2 bar
- Min to Max Operating Pressure (Water)
- 0 - 2 bar
- Mounting Brackets
- OPTIONAL
- Orifice
- 5.6
- Orifice Size
- 5.6 mm
- Pipe/Port Size
- 1/4"
- Pipe/Port Type & Size
- G 1/4 (ISO 228/1)
- Pressure Port/Fitting
- G ISO228/1-G BSPP
- Product Type
- Solenoid Valve
- Product Weight
- 0.60 kg
- Sealing Material
- NBR
- Valve Actuation
- Solenoid - Direct Acting
- Valve Function
- 2 way - 2/2 Normally Closed
- Voltage
- 24 DC
- 24 Volts DC
- Wattage
- 11.6
- Watt Rating
- 11.6 W
