Description

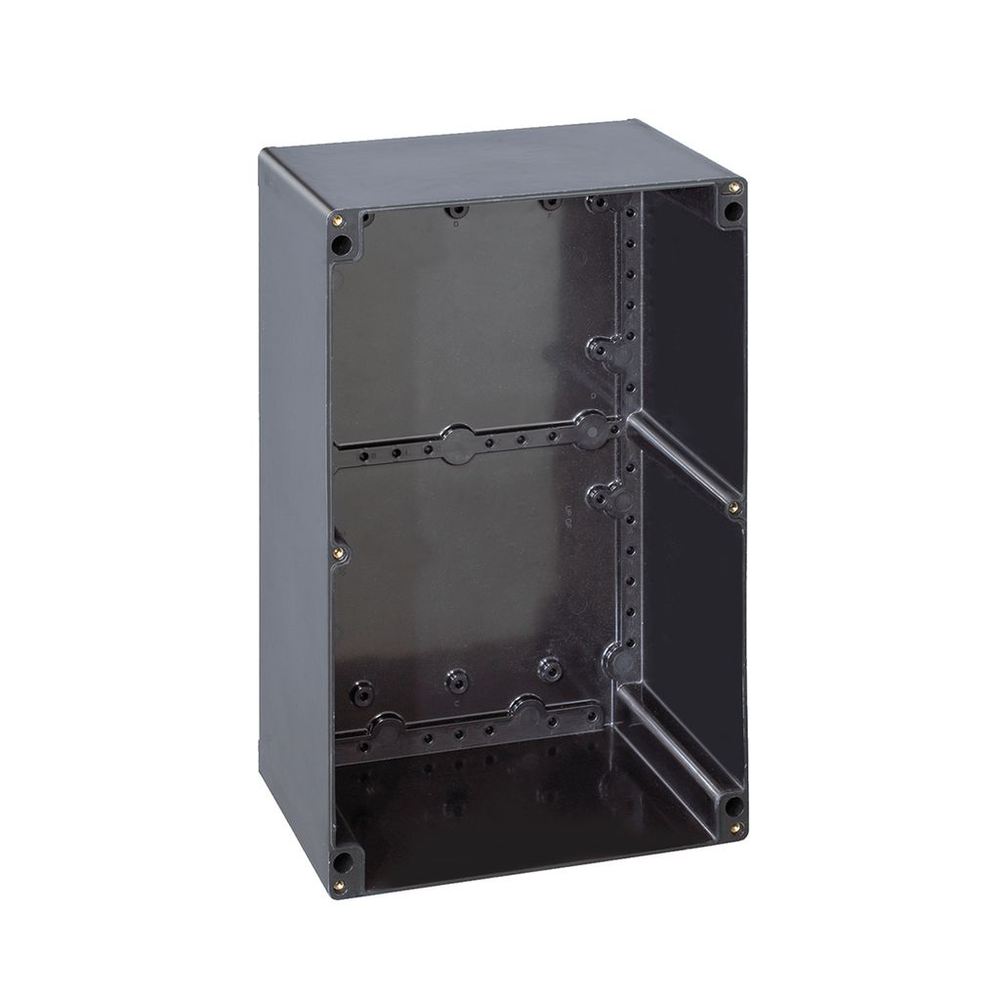

Appleton™ increased safety ATX™ JBEP Series undrilled and pre-drilled, fiberglass reinforced polyester empty junction boxes are available for field drilling and customization. They offer a complete modular range of empty enclosures for use in hazardous locations (Zone 0, 1 and 2 and 20, 21 and 22). These enclosures can be custom drilled and fitted with terminals per your unique design requirements, in your own facility, while maintaining the original certifications.Appleton™ ATX™ JBEP Series Undrilled, Pre-Drilled, Empty FRP Junction Boxes - PN JBEPMP400
Appleton JBEPMP400 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications and Compliances
- ATEX/IECEx Certifications and Compliances
- Zone 1 and 2 - 21 and 22; Ex II 2 GD; IP66; IK10
- NEC/CEC Certifications and Compliances
- Class I, Zone 1, AEx e IIC, T5 or T6; Ex e IIC, T5 or T6; IP66
- Other Certifications
- EURASEC and INMETRO
Specifications
- Custom Options
- Consult factory for custom drilling and assembly requirements
- Options
- External hinges on specific sizes, removable glands plates, nameplates, mounting pan, terminal rail, and inside pocket for document are available. See catalog pages for details. Consult factory for custom drilling and assembly requirements
- Standard Materials
- Static resistant carbon filled fiberglass reinforced polyester (FRP) enclosure with stainless steel hardware. Silicone gasket for sizes 85 x 85, 120 x 120 and EPDM (ethylene propylene diene monomer rubber) gasket for other sizes
- Zone 0 T Rating
- T6 for Ta ≤ +40 °C (+104 °F) and T5 for Ta ≤ +60 °C (+140 °F) and T3 for Ta ≤ +90 °C (+194 °F) for sizes 85 x 85, 120 x 120
- Zones 1 and 2 Temperature Class
- T6 for Ta ≤ +40 °C (+104 °F), T5 for Ta ≤ +60 °C (+140 °F) and T3 for Ta ≤ +90 °C (+194 °F) for sizes 85 x 85, 120 x 120
- Zones 21 and 22 Surface Temperature
- T60 °C (T140 °F) for Ta ≤ +40 °C (+104 °F), T90 °C (T194 °F) for Ta ≤ +60 °C (+140 °F) and T110 °C (T230 °F) for Ta ≤ +90 °C (+194 °F) for sizes 85 x 85, 120 x 120
