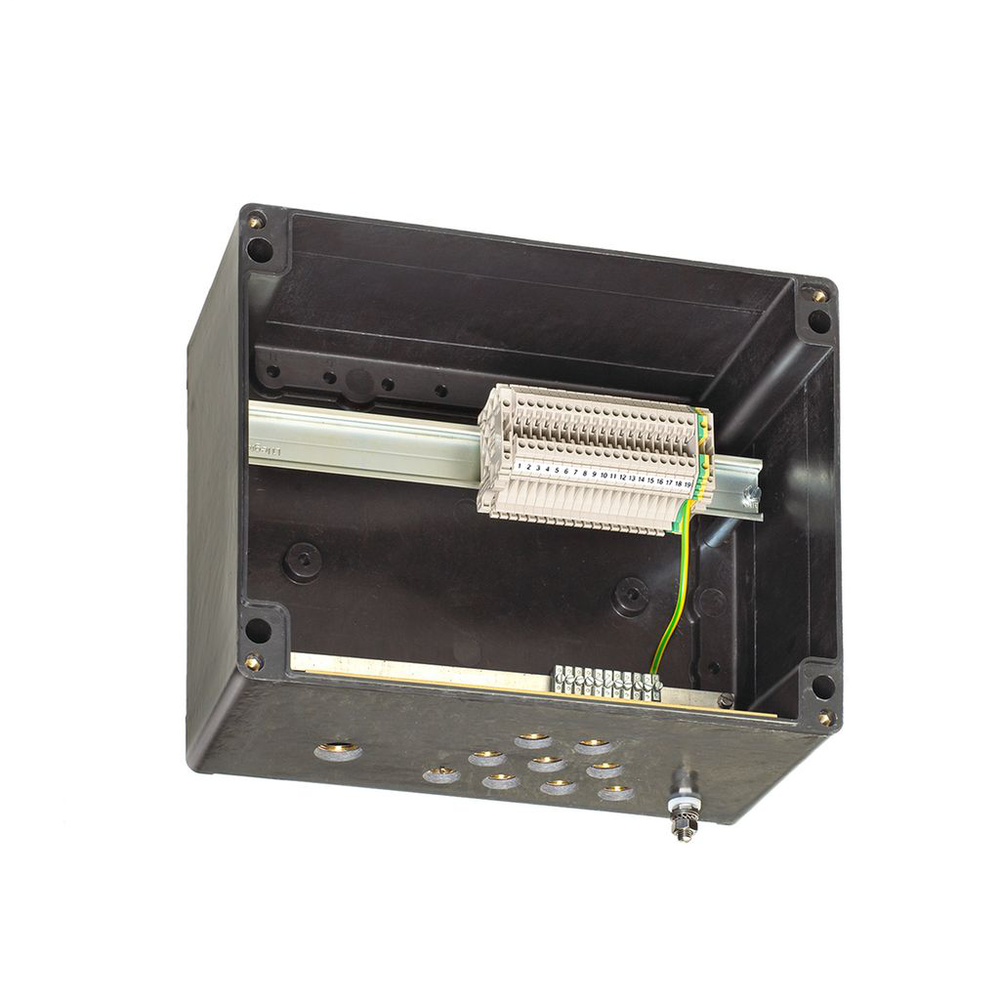

Appleton JBEP171709NE01
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Appleton™ increased safety ATX™ JBEP Series fiberglass reinforced polyester terminal junction boxes for instrumentation applications are factory drilled and equipped. They are available in a complete range of instrumentation and control junction boxes for use in intrinsically safe or non-intrinsically safe systems. These enclosures are designed to optimize wiring space while offering a reduced footprint. They can be used in hazardous locations (Zone 0, 1 and 2, 20, 21 and 22). The JBEP Series is suitable for instrumentation and control cable, armored or un-armored cable, and shielded or non-shielded cable.Appleton™ ATX™ JBEP Series FRP Terminal Boxes for Instrumentation Applications - PN JBEP171709NE01
Appleton JBEP171709NE01 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications and Compliances
- ATEX/IECEx Certifications and Compliances
- Zone 1 and 2 - 21 and 22; Ex II 2 GD; IP66; IK10
- NEC/CEC Certifications and Compliances
- Class I, Zone 1, AEx e IIC, T5 or T6; Ex e IIC, T5 or T6; IP66
- Other Certifications
- EURASEC and INMETRO
Specifications
- Ambient Temperatures
- -55 °C ≤ Ta ≤ +60 °C (-67 °F ≤ Ta ≤ +140 °F)
- Ambient Temperatures: Close Up Plug
- Type Bve: -40 °C to +55 °C (-40 °F to +131 °F)
- Ambient Temperatures: Drain/Breather
- Type DBE: -50 °C to +85 °C (-58 °F to +185 °F)
- Ambient Temperatures: Glands
- Type 757: -60 °C to +100 °C (-40 °F to +212 °F). Type EEXe: -20 °C to +55 °C (-4 °F to +131 °F). Type E1FX, E2FX, E1FW, E2FW, T3, A2F: -60 °C to +130 °C (-76 °F to +266 °F). Type PX, PX2K: -60 °C to +100°C (-76°F to +212°F)
- Ambient Temperatures: Terminals
- Type WDU, WFF: -50 °C to +120 °C (-58 °F to +248 °F). Type SAK, AKZ: -50 °C to +100 °C (-58 °F to +212 °F)
- Custom Options
- Consult factory for custom drilling and assembly requirements
- Options
- External hinges on specific sizes, removable glands plates, nameplates, mounting pan, terminal rail, and inside pocket for document are available. See catalog pages for details.
- Standard Materials
- Static resistant carbon filled fiberglass reinforced polyester (FRP) enclosure with stainless steel hardware. Silicone gasket for sizes 85 x 85, 120 x 120 and EPDM (ethylene propylene diene monomer rubber) gasket for other sizes
- Zone 0 Temperature Class
- T6 for Ta ≤ +40 °C (+104 °F) and T5 for Ta ≤ +60 °C (+140 °F)
- Zones 1 and 2 Temperature Class
- T6 for Ta ≤ +40 °C (+104 °F) and T5 for Ta ≤ +60 °C (+140 °F)
- Zones 21 and 22 Surface Temperature
- T60 °C for Ta ≤ +40 °C (+104 °F), T90 °C (T194 °F) for Ta ≤ +60 °C (+140 °F)
