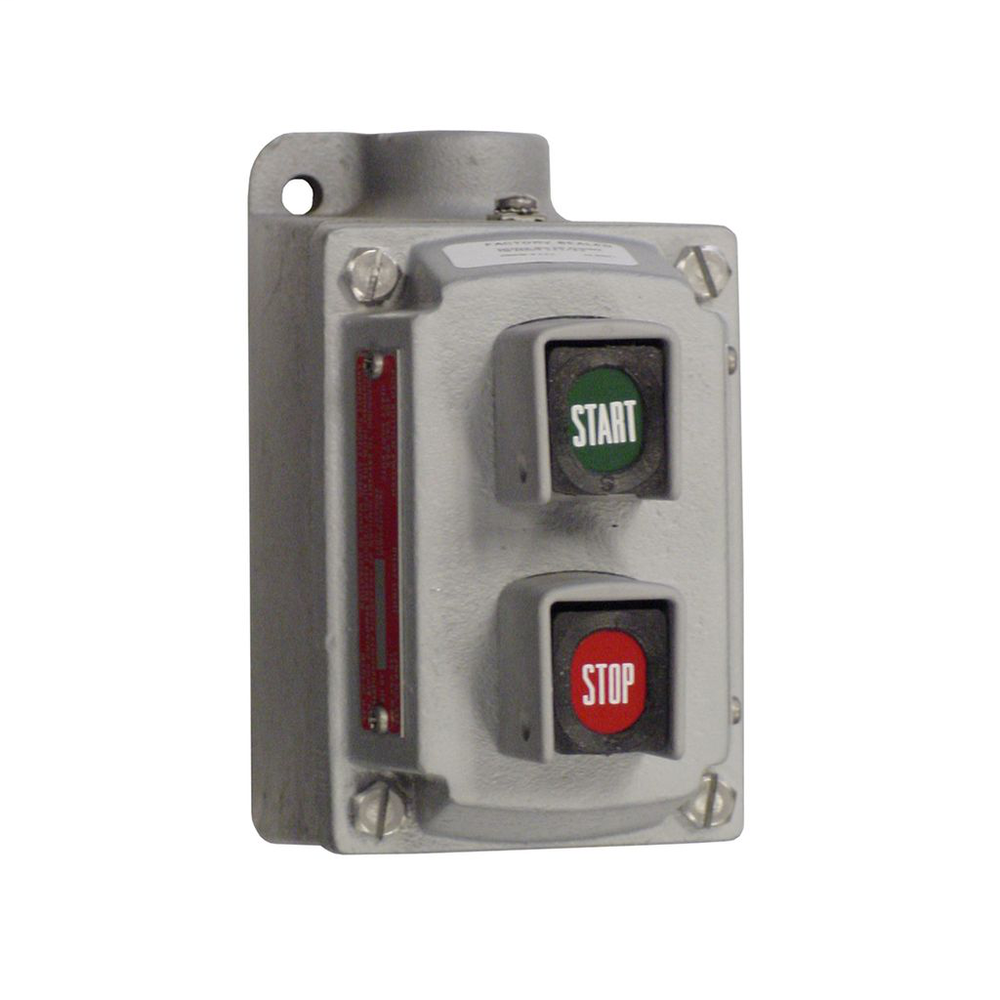

Appleton EDSCT3561J390
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Appleton™ explosionproof, dust-ignitionproof Contender™ Series factory sealed control stations confine the arcing of devices within the enclosure, preventing ignition of ignitable atmospheres during control operation of motors and other equipment. A variety of push buttons and selector switches are available for use in conjunction with contactors or magnetic starters for remote control of motors. They provide circuit control and/or selection. Pilot lights are available to provide visual assurance that an electrical function is being performed at a remote or local location. Contender™ Series control stations are designed for use in classified areas where flammable vapors, gases or highly combustible dusts are present.Appleton™ Contender™ Series Factory Sealed Control Stations and Pilot Lights - PN EDSCT3561J390
Appleton EDSCT3561J390 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications and Compliances
- NEC and CEC Certifications and Compliances
- Class I, Division 1, Groups C, D; Class I, Division 2, Groups B, C, D; Class II, Division 1 and 2, Groups E, F, G; Class III; NEMA 3, 7CD, 9EFG
Specifications
- Body and Cover Standard Materials and Finishes
- Malleable iron body and cover with triple-coat finish (1) zinc electroplate, (2) chromate, and (3) epoxy powder coat
- Incandescent Pilot Lights
- Amber, blue, clear, green, opal pilot light jewel/guard assembly. See catalog pages for details
- LED Pilot Lights
- Red, amber, green pilot available in lieu of incandescent pilot lights. See catalog pages for details
- Modified Operation Three Position Selector Switches
- Momentary contact right position, spring return to center, maintained contact left position (with or without alternate contacts). Momentary contact left position, spring return to center, maintained contact right position. See catalog pages for details
- Optional Lockouts
- Selector switch lockout locks two or three position handle in any position. Securing rod for push button lockout guard is also available. See catalog pages for details
- Option Materials
- 1- or 2-gang copperfree (4/10 of 1% max.) aluminum bodies and covers available. See catalog pages for details
- SPBB Standard Materials and Finishes
- Push button upper barrel is copperfree (4/10 of 1% max.) aluminum with a natural finish; lower barrel is phenolic with nylon plastic button (dust cap models have neoprene buttons)
- SPLS Standard Materials and Finishes
- Pilot light guard and body assembly is copperfree (4/10 of 1% max.) aluminum with a natural finish; steel clamping ring; and tempered glass jewel
- SSBA Standard Materials and Finishes
- Selector switch operator mechanism is copperfree (4/10 of 1% max.) aluminum with a natural finish; nylon cam; and sealed phenolic contact block
