Description

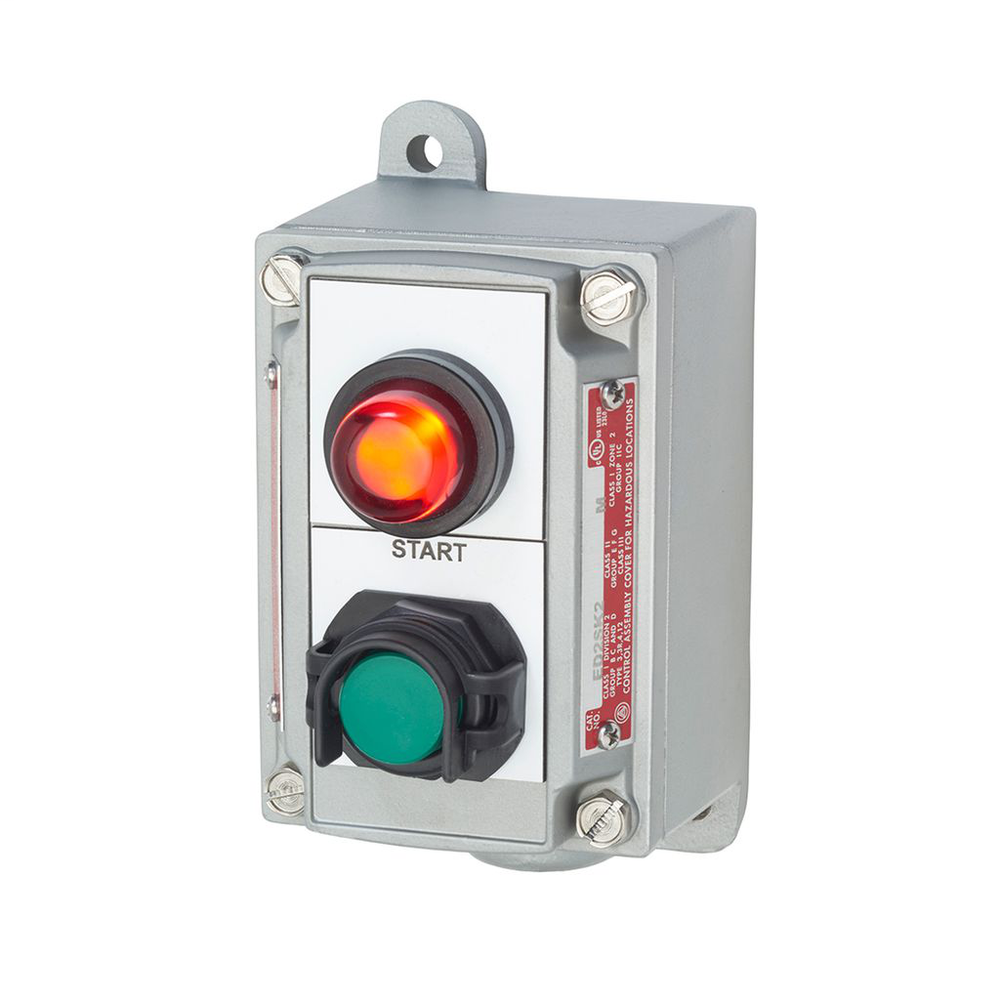

Appleton™ Division 2 Contender™ Series factory sealed control stations are for use in washdown areas and other damp, wet and highly corrosive areas for control operation of motors and other equipment. A variety of push buttons and selector switches are available for use in conjunction with contactors or magnetic starters for remote control of motors in hazardous locations. Pilot lights are available to provide visual assurance that an electrical function is being performed at a remote or local location.Appleton™ Division 2 Contender™ Series Control Stations and Pilot Lights - PN ED2S175U1
Appleton ED2S175U1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications and Compliances
- NEC and CEC Certifications and Compliances
- Class I, Division 2, Groups B, C, D; Zone 2; Class II, Division 1 and 2, Groups E, F, G; Class III; NEMA?3, 3R, 4, 4X, 12; IP66
Specifications
- Available Options
- Green, amber, blue, white UCPL pilot light color. Vdc pilot light. Red, green, amber, black, yellow, blue momentary push button colors. Alternate contacts. See catalog pages for details
- Modified Operation Three Position Selector Switches
- Momentary contact right position, spring return to center, maintained contact left position (with or without alternate contacts). Momentary contact left position, spring return to center, maintained contact right position. See catalog pages for details
- Standard Materials and Finishes
- Backbox is malleable iron with triple-coat finish (1) zinc electroplate, (2) chromate, and (3) epoxy powder coat or copperfree (4/10 of 1% max.) aluminum with epoxy powder coat finish. Cover is copperfree aluminum with epoxy powder coat finish.
- Temperature Rating
- -25 °C to +40 °C (-13 °F to -104 °F)
