Description

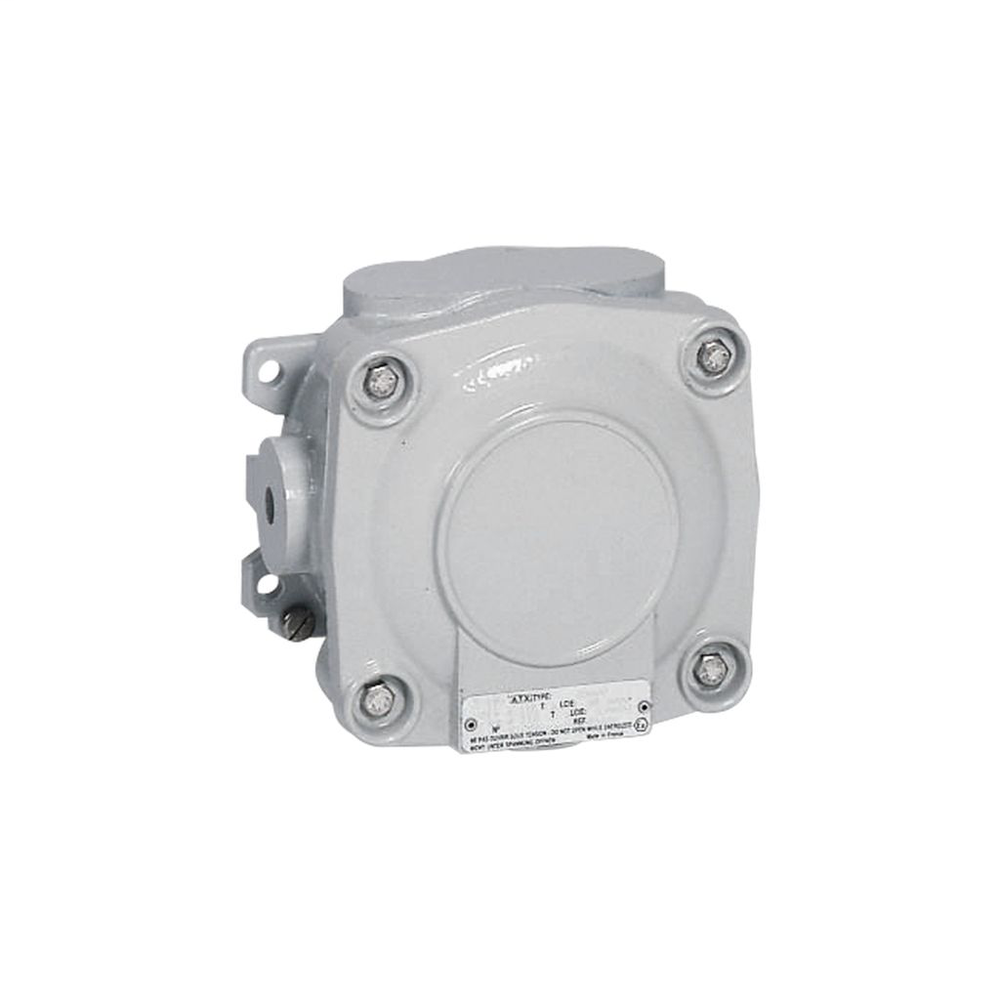

Appleton™ flameproof ATX™ JBDA and JBDF - ECDA and ECDF Series customized enclosures are available in a wide range of sizes, and can be factory customized to suit various junction box, enclosure and control applications. They are particularly suited for oil and gas industry applications in classified hazardous locations exposed to flammable gases, vapors or dusts. The JBD Series may be customized to house terminal blocks. The ECD Series may be customized to house a range of components such as control units, breakers, starters, relays, and meters.Appleton™ ATX™ JBDA JBDF - ECDA ECDF ACSEW Customized Enclosures - PN ECDAB343223
Appleton ECDAB343223 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications and Compliances
- ATEX/IECEx Certifications and Compliances
- Zone 1 and 2 - 21 and 22; Ex II 2 GD ; IP66; IK10
- Other Certifications
- EURASEC
Specifications
- Ambient Temperature
- CF30B, CF70B, CF70C: -20 °C to +55 °C (-4 °F to +131 °F); CF10B,CF20B,CF40B, CF50B, CF10C, CF30C, CF50C: -40 °C to +55 °C (-40 °F to +131 °F); CF60B: -50 °C to +55 °C (-58 °F to +131 °F)
- CF10B-70B/CF10C-70C Zones 1 and 2 Temperature Class
- T6 to T4
- CF10B-70B/CF10C-70C Zones 21 and 22 Surface Temperature
- T80 °C to T130 °C (T176 °F to T 266 °F)
- CF10BU-70BU Ambient Temperature
- CF30BU, CF60BU, CF70BU: -20 °C to +55 °C (-4 °F to +131 °F), CF10BU, CF20BU, CF40BU, CF50BU:-40 °C to +55 °C (-40 °F to +131 °F)
- CF2/A/B/C and CF1A/B/D/E Ambient Temperature
- -40 °C to +55 °C (-40 °F to +131 °F)
- CF2/A/B/C and CF1A/B/D/E Surface Temperature
- Zones 21 and 22: T95 °C to T290 °C (T203 °F to 554 °F)
- CF2/A/B/C and CF1A/B/D/E Temperature Class
- Zones 1 and 2: T6 to T2
- JBEW Ambient Temperature
- -40 °C to +55 °C (-40 °F to +131 °F)
- JBEW Zones 1 and 2 Temperature Class
- T6 to T4
- JBEW Zones 21 and 22 Surface Temperature
- T80 °C to T130 °C (T176 °F to T 266 °F)
- Standard Materials and Finishes
- Gray painted cast iron or marine grade aluminum enclosure with stainless steel hardware
