Appleton DEJS100A
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

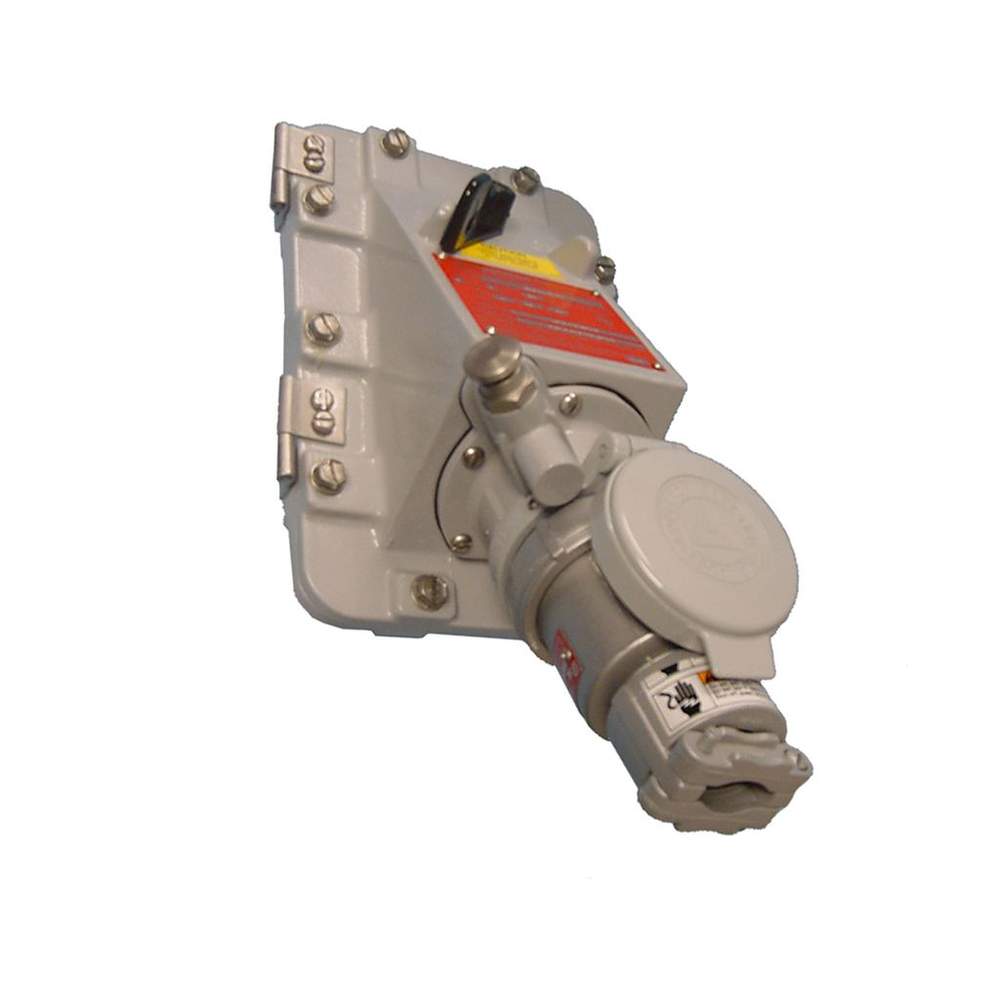

JBR Series 30 and 60 Amp Switched Receptacles are heavy duty flanged and bolted enclosures that provide exceptional safety in hazardous locations. The terminal block in the mounting box makes wiring easy, and a special polarization option prevents insertion of a plug into a receptacle wired for a different voltage. Dead front interlocked construction requires the plug to be fully inserted before the switch can be placed in the ON position.Appleton™ JBR 30 and 60 Amp Series Interlocked Receptacles - PN DEJS100A
Appleton DEJS100A is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Amperage
- 30 or 60
- Hazardous Area Classification
- Class I, Division 1 and 2, Groups B, C, D; Class II, Division 1 and 2, Groups F, G; Class III NEMA 3, 3R, 4, 4X, 7BCD, 9FG
- Hertz
- 50-400 Hz
- Horsepower
- 7.5, 10, 15, 20, 25, 30
- Materials and Finishes
- Receptacle housing and mounting box is copperfree (4/10 of 1% max.) aluminum with epoxy powder coat. Stainless steel captive cover bolts, mounting feet and hinges.
- Mounting Box Entries
- Dead-End
- Number of Poles
- 3 or 4
- Number of Wires
- 2 or 3
- Plug Cable Diameter
- 30 Amp: 0.500 to 1.125#8221;; 60 Amp: 0.500 to 1.375#8221;
- Voltage
- 240/480/600 Vac
